| • 16-Bit ADC with Integrated Analog Front-End |
| • Simultaneous Sampling: 6-Channels |
| • Pin-Programmable Bipolar Inputs: ±10 V and ±5 V |
| • High Input Impedance: 1 MΩ |
| • 5-V Analog Supply: 2.3-V to 5-V Digital Supply |
| • Overvoltage Input Clamp with 7-kV ESD |
| • Low-Drift, On-Chip Reference (2.5 V) and Buffer |
• Excellent Performance:
– 250-kSPS Max Throughput per Channel
– DNL: ±0.35 LSB; INL: ±0.45 LSB
– SNR: 96.4 dB; THD: −114 dB |
• Over Temperature Performance:
– Max Offset Drift: 3 ppm/°C
– Gain Drift: 6 ppm/°C |
| • On-Chip Digital Filter for Oversampling
|
| • Flexible Parallel, Byte, and Serial Interface |
| • Temperature Range: –40°C to +125°C |
| • Package: 64-Pin LQFP |
|
| CATALOG |
| ADS8586SIPMR COUNTRY OF ORIGIN |
| ADS8586SIPMR PARAMETRIC INFO |
| ADS8586SIPMR PACKAGE INFO |
| ADS8586SIPMR MANUFACTURING INFO |
| ADS8586SIPMR PACKAGING INFO |
| ADS8586SIPMR ECAD MODELS |
| ADS8586SIPMR FUNCTIONAL BLOCK DIAGRAM |
| ADS8586SIPMR APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
|
| PARAMETRIC INFO |
| Converter Type |
General Purpose |
| Input Type |
Voltage |
| Architecture |
SAR |
| Resolution |
16bit |
| Number of ADCs |
6 |
| Sampling Rate |
250ksps |
| Digital Interface Type |
Byte|Parallel|Serial |
| Voltage Reference |
Internal|External |
| Input Signal Type |
Single-Ended |
| Polarity of Input Voltage |
Bipolar |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Integral Nonlinearity Error |
±1.5LSB |
| Signal to Noise Ratio |
92.7dB(Typ) |
| Sample and Hold |
Yes |
| Number of Input Channels |
6 |
| Single-Ended Input |
Yes |
| Differential Input |
No |
| Input Voltage |
±5V/±10V |
| No Missing Codes (bit) |
16 |
| Full Scale Error |
±96LSB |
| Differential Nonlinearity |
±0.5LSB |
| Voltage Supply Source |
Analog and Digital |
| Minimum Single Supply Voltage (V) |
4.75 |
| Typical Single Supply Voltage (V) |
5 |
| Maximum Single Supply Voltage (V) |
5.25 |
| Digital Supply Support |
Yes |
|
| |
| PACKAGE INFO |
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
64 |
| Lead Shape |
Gull-wing |
| PCB |
64 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
10.2(Max) |
| Package Width (mm) |
10.2(Max) |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
12.2(Max) |
| Package Overall Width (mm) |
12.2(Max) |
| Package Overall Height (mm) |
1.6(Max) |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026 |
|
| |
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
R |

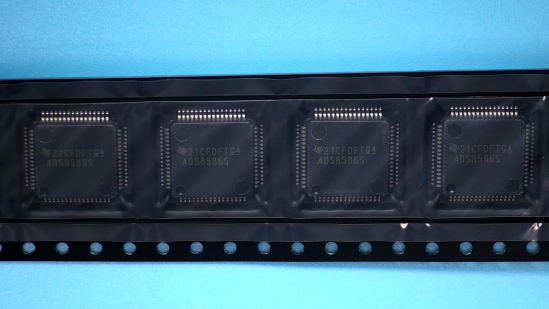

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
|
| |

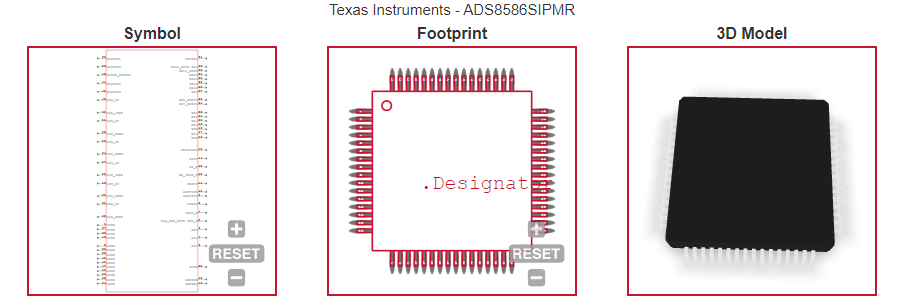

| ECAD MODELS |
 |
|

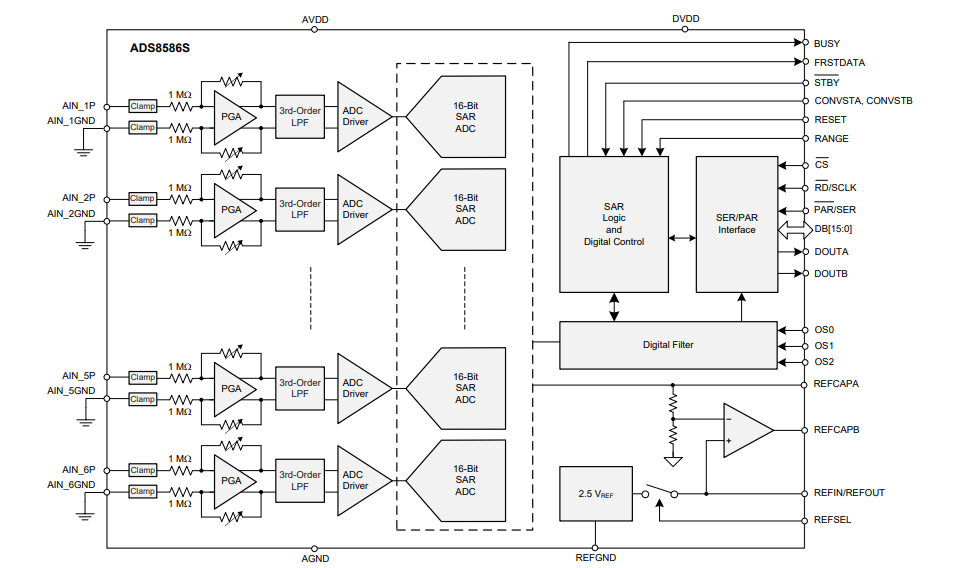

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS
|
| • Monitoring and Control for Power Grids |
| • Protection Relays |
| • Multi-Phase Motor Controls
|
| • Industrial Automation and Controls |
| • Multichannel Data Acquisition Systems |
|
