• Qualified for automotive applications
|
• Low power operation
|
• Bidirectional communication
|
• 3 V/5 V level translation
|
• High temperature operation: 125°C
|
• High data rate: dc to 90 Mbps (NRZ)
|
• High common-mode transient immunity: >25 kV/μs
|
• Output enable function
|
• 16-lead SOIC wide body package
|
• RoHS-compliant models available
|
• TÜV approval: IEC/EN/UL/CSA 61010-1
|
|
| CATALOG |
ADuM1300ARWZ-RL COUNTRY OF ORIGIN
|
ADuM1300ARWZ-RL PARAMETRIC INFO
|
ADuM1300ARWZ-RL PACKAGE INFO
|
ADuM1300ARWZ-RL MANUFACTURING INFO
|
ADuM1300ARWZ-RL PACKAGING INFO
|
ADuM1300ARWZ-RL ECAD MODELS
|
ADuM1300ARWZ-RL APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Ireland
|
Malaysia
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Number of Channels per Chip |
3 |
| Type |
General Purpose |
| Isolated Power |
No |
| Output Type |
CMOS |
| Minimum Isolation Voltage (Vrms) |
2500 |
| Minimum Pulse Width (ns) |
1000(Max) |
| Maximum Pulse Width Distortion (ns) |
40 |
| Minimum Common Mode Rejection (kV/us) |
25 |
| Maximum Working Insulation Voltage |
560Vp |
| Maximum Fall Time (ns) |
2.5(Typ) |
| Maximum Rise Time (ns) |
2.5(Typ) |
| Maximum Propagation Delay Time (tPHL) (ns) |
100 |
| Maximum Propagation Delay Time (tPLH) (ns) |
100 |
| Maximum Propagation Delay Skew (ns) |
50 |
| Maximum Data Rate |
1Mbps |
| Minimum Operating Supply Voltage (V) |
2.7|3 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Maximum Quiescent Supply Current (mA) |
2.5/1 |
| Coupling Type |
Magnetic Coupling |
| Forward/Reverse Channels |
3/0 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC W |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
10.5(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.35(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.5(Max) |
| Package Overall Width (mm) |
10.65(Max) |
| Package Overall Height (mm) |
2.65(Max) |
| Seated Plane Height (mm) |
2.65(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Wide Body |
| Package Family Name |
SO |
| Jedec |
MS-013AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

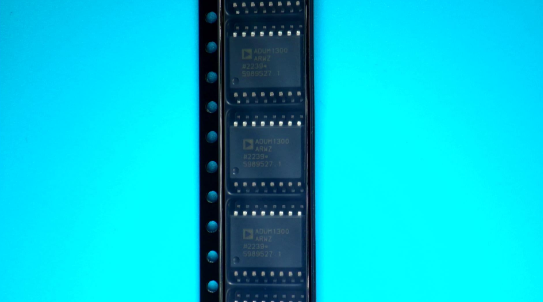

PACKAGING INFO
|
| Packaging Suffix |
RL |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
16 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• General-purpose multichannel isolation
|
| • SPI interface/data converter isolation |
| • RS-232/RS-422/RS-485 transceivers |
| • Industrial field bus isolation |
• Automotive systems
|
|
| |
