• isoPower integrated, isolated dc-to-dc converter
|
• 100 mA output current for ADuM6020
|
• 60 mA output current for ADuM6028
|
| • AEC-Q100 qualified for automotive applications
|
| • Meets CISPR22 Class B emissions limits at full load on a 2‑layer PCB |
| • 16-lead SOIC_IC package with 8.3 mm minimum creepage |
| • 8-lead SOIC_IC package with 8.3 mm minimum creepage |
| • High temperature operation: 125°C maximum |
| • Safety and regulatory approvals► UL recognition: 5000 V rms for 1 minute per UL 1577► CSA certification per IEC 62368-1, IEC 61010-1, and IEC60601-1► TÜV SÜD certification per EN IEC 62368-1► VDE certificate of conformity► VDE V 0884-10► VIORM = 565 V peak► CQC certification per GB4943.1-2011 |
|
| CATALOG |
| ADUM6028-5BRIZ COUNTRY OF ORIGIN |
ADUM6028-5BRIZ PARAMETRIC INFO
|
ADUM6028-5BRIZ PACKAGE INFO
|
ADUM6028-5BRIZ MANUFACTURING INFO
|
ADUM6028-5BRIZ PACKAGING INFO
|
ADUM6028-5BRIZ EACD MODELS
|

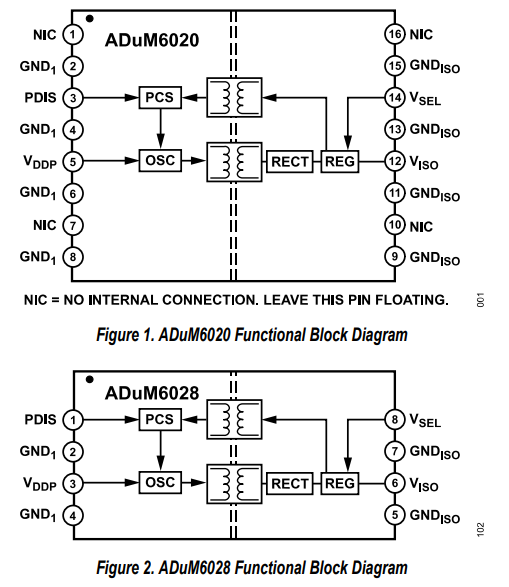

| ADUM6028-5BRIZ FUNCTIONAL BLOCK DIAGRAMS |
| ADUM6028-5BRIZ APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Isolation |
Isolated |
| type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
5|3.3 |
| Maximum Output Current (A) |
0.06 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Isolation Voltage |
5000Vrms |
| Supplier Temperature Rating |
Industrial |
| Switching Regulator |
yes |
| Typical Input Voltage (V) |
5 |
| Output Type |
Fixed |
| Efficiency (%) |
33(Typ) |
| Load Regulation |
5% |
| Line Regulation |
2mV/V(Typ) |
| Switching Frequency (kHz) |
180000(Typ) |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| On/Off Logic |
Negative |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOIC W |
| Number of pins |
8 |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
5.85 |
| Package width (mm) |
7.5 |
| Package height (mm) |
2.35 |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
2.5 |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| Package series name |
SO |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
|
|
PACKAGING INFO
|
| Package |
Tube |
| Packing quantity |
45 |
| packaging type file |
Link to datasheet |
|
|
ECAD MODELS
|
|
|
| FUNCTIONAL BLOCK DIAGRAMS |
 |
|
APPLICATIONS
|
• RS-485/RS-422/CAN transceiver power
|
| • Power supply start-up bias and gate drives |
| • Isolated sensor interfaces |
| • Automotive on-board charger (OBC) and dc to dc |
| • Industrial PLCs |
| |
