CATALOG |
ADV212BBCZ-150 COUNTRY OF ORIGIN |
ADV212BBCZ-150 PARAMETRIC INFO
|
ADV212BBCZ-150 PACKAGE INFO
|
ADV212BBCZ-150 MANUFACTURING INFO
|
ADV212BBCZ-150 PACKAGING INFO
|
ADV212BBCZ-150 ECAD MODELS
|
ADV212BBCZ-150 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Singapore |
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
Minimum Operating Temperature (°C) |
-40 |
Maximum Operating Temperature (°C) |
85 |
Supplier Temperature Grade |
Commercial |
Power Supply Type |
Analog |
Minimum Operating Supply Voltage (V) |
1.425|2.375|3.135 |
Typical Operating Supply Voltage (V) |
1.5|2.5|3.3 |
Maximum Operating Supply Voltage (V) |
1.575|2.625|3.465 |
Typical Supply Current (mA) |
380 |
|
|

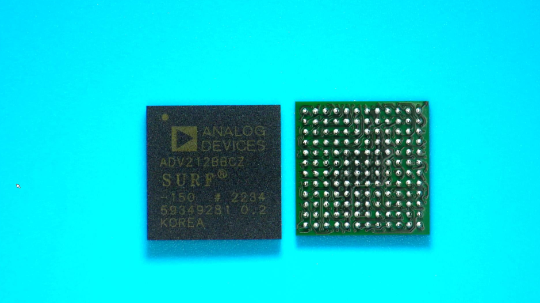

PACKAGE INFO
|
Supplier Package |
CSP-BGA |
Basic Package Type |
Ball Grid Array |
Pin Count |
144 |
Lead Shape |
Ball |
PCB |
144 |
Tab |
N/R |
Pin Pitch (mm) |
1 |
Package Length (mm) |
13 |
Package Width (mm) |
13 |
Package Height (mm) |
1.21 |
Package Diameter (mm) |
N/R |
Seated Plane Height (mm) |
1.85(Max) |
Mounting |
Surface Mount |
Package Material |
Plastic |
Package Description |
Chip Scale Ball Grid Array Package |
Package Family Name |
BGA |
Jedec |
MO-192AAD-1 |
Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
MSL |
3 |
Maximum Reflow Temperature (°C) |
260 |
Reflow Solder Time (Sec) |
30 |
Number of Reflow Cycle |
3 |
Standard |
J-STD-020D |
Maximum Wave Temperature (°C) |
N/R |
Wave Solder Time (Sec) |
N/R |
Lead Finish(Plating) |
SnAgCu |
Under Plating Material |
N/A |
Terminal Base Material |
N/A |
Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
Packaging |
Tray |
Quantity Of Packaging |
160 |
Packaging Document |
Link to Datasheet |
|
|

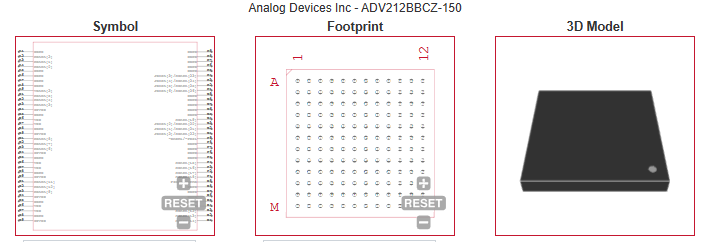

ECAD MODELS
|

|
|
APPLICATIONS
|
• Networked video and image distribution systems
|
• Wireless video and image distribution
|
• Image archival/retrieval
|
• Digital CCTV and surveillance systems
|
• Digital cinema systems
|
• Professional video editing and recording
|
• Digital still cameras
|
• Digital camcorders
|
|
