• Full compatibility with the optical performance
requirements of the FDDI PMD standard
|
• Full compatibility with the FDDI LCF-PMD standard
|
• Full compatibility with the optical performance
requirements of the ATM 100-Mb/s physical layer
|
| • Full compatibility with the optical performance
requirements of 100BASE-FX version of IEEE802.3u |
| • Multisourced 1 × 9 package style with choice of duplex SC
or duplex ST1 receptacle |
| • Wave solder and aqueous wash process compatible |
| • Single +3.3V or +5V power supply |
| • RoHS compliance |
|
| CATALOG |

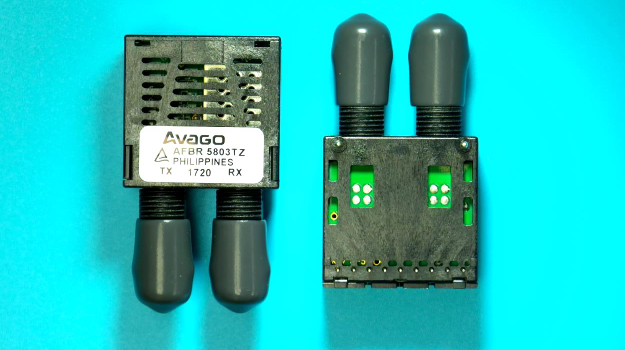

| AFBR-5803TZ COUNTRY OF ORIGIN |
AFBR-5803TZ PARAMETRIC INFO
|
AFBR-5803TZ PACKAGE INFO
|
AFBR-5803TZ MANUFACTURING INFO
|
AFBR-5803TZ APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Philippines |
|
PARAMETRIC INFO
|
| Type |
TX/RX |
| Maximum Data Rate |
125MBd |
| Average Optical Output Power (dBm) |
-23.5 to -14 |
| Emitter Type |
LED |
| Connector Type |
ST |
| Peak Wavelength (nm) |
1308/1380(Max) |
| Fiber Mode |
Multi Mode |
| Maximum Power Dissipation (mW) |
970/500 |
| Rise Time (ns) |
3/2.2 |
| Maximum Fall Time (ns) |
3/2.2 |
| Maximum Output Current (mA) |
50 |
| Minimum Operating Supply Voltage (V) |
3.135|4.75 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Maximum Operating Supply Voltage (V) |
3.5|5.25 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Operating Supply Voltage (V) |
3.135 to 3.5|4.75 to 5.25 |
| Maximum Storage Temperature (°C) |
100 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Supplier Package |
N/A |
| Pin Count |
9 |
| PCB |
9 |
| Tab |
N/R |
| Package Length (mm) |
25.4 |
| Package Width (mm) |
12 |
| Package Height (mm) |
24.8 |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
Phosphor-Bronze |
|
|
APPLICATIONS
|
• Multimode fiber backbone links
|
• Multimode fiber wiring closet to desktop links
|
| • Very low cost multimode fiber links from wiring closet to
desktop |
| • Multimode fiber media converters |
|
| |
