• Feedback Pin Reference Voltage VRSET = 0.56V at +25°C
|
• -40°C to +125°C Temperature Range
|
• 1.1V to 100V Open-Drain Output
|
| • Negative temperature VRSET co-efficient automatically reduces the LED current at high temperatures
|
| • Low thermal impedance SOT26 package with copper lead frame |
| • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) |
| • Halogen and Antimony Free. “Green” Device (Note 3) |
| • Qualified to AEC-Q101 Standards for High Reliability |
|
| CATALOG |
| AL5801W6-7 COUNTRY OF ORIGIN |
AL5801W6-7 PARAMETRIC INFO
|
AL5801W6-7 PACKAGE INFO
|
AL5801W6-7 MANUFACTURING INFO
|
AL5801W6-7 PACKAGING INFO
|
AL5801W6-7 EACD MODELS
|
| AL5801W6-7 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Minimum Operating Supply Voltage (V) |
3.5 |
| Typical Operating Supply Voltage (V) |
5|9|12|15|18 |
| Maximum Operating Supply Voltage (V) |
20 |
| Maximum Power Dissipation (mW) |
1050 |
| Output Voltage (V) |
1.1 to 100 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Operating Supply Voltage (V) |
3.5 to 20 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-26 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
6 |
| Pin shape |
Gull-wing |
| PCB |
6 |
| ears |
N/R |
| Pin spacing (mm) |
0.95 |
| Package length (mm) |
3 |
| Package width (mm) |
1.6 |
| Package height (mm) |
1.1 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
3 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1.15 |
| Mounting surface height (mm) |
1.15 |
| Install |
Surface Mount |
| Package weight (g) |
0.016 |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
MO-178AB |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging Suffix |
7 |

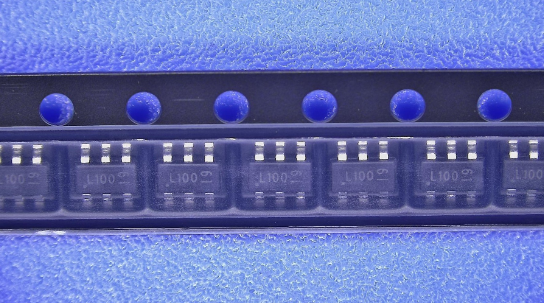

| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
| packaging type file |
Link to datasheet |
|
|

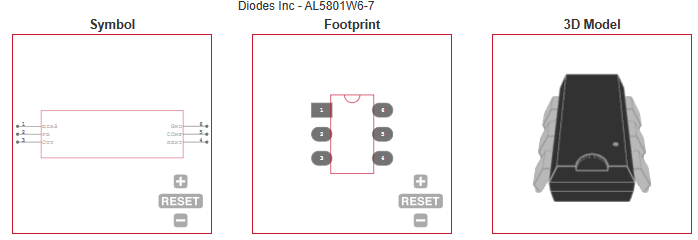

ECAD MODELS
|
|
|
APPLICATIONS
|
• Linear LED Drivers
|
| • LED Signs |
| • Offline LED Luminaries |
| |
