• AEC-Q100 qualified for automotive applications:– Temperature grade 1: –40°C to +125°C, TA
|
• Functional-safety capable– Documentation available to aid functional safety system design
|
• High output current drive: 500 mA, peak (per channel)– Replaces discrete op amps and transistors
|
• Wide supply range for both supplies (up to 24 V)
|
• Overtemperature shutdown
|
• Current limit
|
• Shutdown pin for low IQ applications
|
• 21-MHz gain bandwidth with 50-V/µs slew rate
|
• Package: 14-pin HTSSOP (PWP)
|
|
| CATALOG |
ALM2403QPWPRQ1 COUNTRY OF ORIGIN
|
ALM2403QPWPRQ1 PARAMETRIC INFO
|
ALM2403QPWPRQ1 PACKAGE INFO
|
ALM2403QPWPRQ1 MANUFACTURING INFO
|
ALM2403QPWPRQ1 PACKAGING INFO
|
ALM2403QPWPRQ1 ECAD MODELS
|
ALM2403QPWPRQ1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Manufacturer Type |
Power Amplifier |
| Type |
Power Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
5 |
| Number of Channels per Chip |
2 |
| Minimum PSRR (dB) |
100(Typ) |
| Typical Single Supply Voltage (V) |
9|12|15|18 |
| Maximum Single Supply Voltage (V) |
24 |
| Minimum Dual Supply Voltage (V) |
±2.5 |
| Typical Gain Bandwidth Product (MHz) |
21 |
| Maximum Input Offset Voltage (mV) |
25@24V |
| Typical Dual Supply Voltage (V) |
±3|±5|±9 |
| Maximum Input Offset Current (uA) |
0.0002@24V |
| Maximum Dual Supply Voltage (V) |
±12 |
| Maximum Operating Supply Voltage (V) |
±12|24 |
| Maximum Input Bias Current (uA) |
0.0001@24V |
| Minimum CMRR (dB) |
44 |
| Maximum Supply Voltage Range (V) |
17 to 30 |
| Minimum CMRR Range (dB) |
<50 |
| Typical Voltage Gain (dB) |
111 |
| Typical Slew Rate (V/us) |
50@24V |
| Typical Settling Time (ns) |
400 |
| Typical Input Noise Voltage Density (nV/rtHz) |
150@24V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.048@24V |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Power Supply Type |
Single|Dual |
|
|
PACKAGE INFO
|
| Supplier Package |
HTSSOP EP |
| Pin Count |
14 |
| PCB |
14 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
5.1(Max) |
| Package Width (mm) |
4.5(Max) |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
| PACKAGING INFO |
| Packaging Suffix |
R |

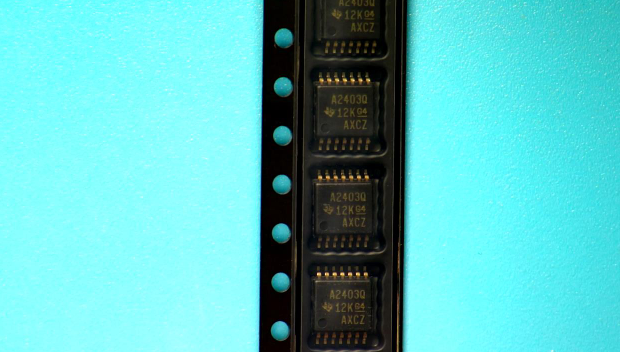

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Packaging Document |
Link to Datasheet |
|
|

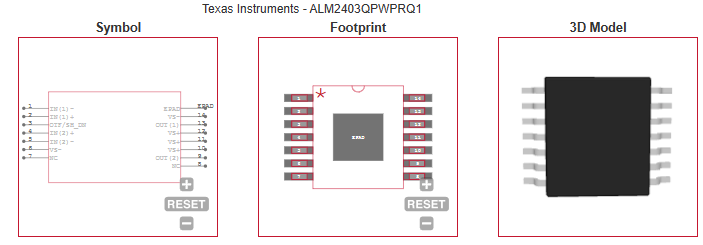

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Resolver-based automotive and industrial applications |
| • Inverter and motor control |
| • Brake system |
| • Electric power steering (EPS) |
| • Rearview mirror module |
| • Automotive eMirrors |
| • Servo drive power stage module |
| • Flight control system |
| |
