• ±250-mV input voltage range optimized for shunt resistors
|
• Very low nonlinearity: 0.075% max at 5 V
|
• Low noise: 3.1 mVRMS typ
|
| • Low high-side supply current:8 mA max at 5 V
|
| • Input bandwidth: 60 kHz min |
| • Fixed gain: 8 (0.5% Accuracy) |
| • High common-mode rejection ratio: 108 dB |
| • Low-side operation: 3.3 V |
|
| CATALOG |
| AMC1100DUBR COUNTRY OF ORIGIN |
AMC1100DUBR PARAMETRIC INFO
|
AMC1100DUBR PACKAGE INFO
|
AMC1100DUBR MANUFACTURING INFO
|
AMC1100DUBR PACKAGING INFO
|
AMC1100DUBR EACD MODELS
|
| AMC1100DUBR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| China |
| Thailand |
|
PARAMETRIC INFO
|
| type |
Differential Amplifier |
| Number of Elements per Chip |
1 |
| Number of Channels per Chip |
1 |
| Minimum PSRR (dB) |
61(Typ) |
| Maximum Input Offset Voltage (mV) |
0.2(Typ)@3.3V/5V |
| Minimum CMRR (dB) |
95(Typ) |
| Minimum CMRR Range (dB) |
95 to 105 |
| Maximum Input Resistance (MOhm) |
0.028(Typ)@3.3V/5V |
| Maximum Voltage Gain Range (dB) |
<35 |
| Maximum Voltage Gain (dB) |
8(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Supplier Temperature Rating |
Extended Industrial |
| Power Supply Type |
Dual |
| Maximum Supply Voltage Range (V) |
5 to 7 |
| Minimum Dual Supply Voltage (V) |
2.7|4.5 |
| Typical Dual Supply Voltage (V) |
5 |
| Maximum Dual Supply Voltage (V) |
5.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
8@5V/7@5.5V |
| Maximum Power Dissipation (mW) |
44 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOP |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
8 |
| Pin shape |
Gull-wing |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
2.54 |
| Package length (mm) |
9.55(Max) |
| Package width (mm) |
6.67(Max) |
| Package height (mm) |
3.35(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
9.55(Max) |
| Package Overall Width (mm) |
10.7(Max) |
| Package Overall Height (mm) |
4.85(Max) |
| Mounting surface height (mm) |
4.85(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Plastic Small Outline Package |
| Package series name |
SO |
| JEDEC |
MS-001BA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
not applicable |
| Number of reflow cycles |
not applicable |
| standard |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

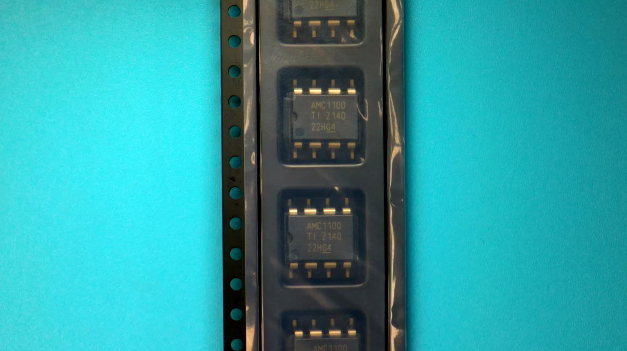

PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |
Tape and reel packaging |
| Packing quantity |
350 |
| packaging type file |
Link to datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Electricity meters
|
| • String inverters |
| • Power measurement applications |
| |
