• ±1-V input voltage range optimized for voltage measurements with high input impedance
• 3.3-V or 5-V single supply operation with integrated DC/DC converter
• Fixed gain: 2.0
• Low DC errors:– Gain error: ±0.2% (max)– Gain drift: ±45 ppm/°C (max)– Offset error: ±0.3 mV (max)– Offset drift: ±4 µV/°C (max)– Nonlinearity: ±0.02% (max)
• High CMTI: 85 kV/µs (min)
• System-level diagnostic features
• Safety-related certifications:– 6000-VPK reinforced isolation per DIN VDE V 0884-11 (VDE V 0884-11): 2017-01– 4250-VRMS isolation for 1 minute per UL1577
• Meets CISPR-11 and CISPR-25 EMI standards


CATALOG
AMC3330DWER COUNTRY OF ORIGIN
AMC3330DWER PACKAGE INFO
AMC3330DWER MANUFACTURING INFO
AMC3330DWER PACKAGING INFO
AMC3330DWER ECAD MODELS
AMC3330DWER APPLICATIONS


COUNTRY OF ORIGIN
Taiwan (Province of China)
Malaysia


PACKAGE INFO
Supplier Package SOIC
Pin Count 16
PCB 16
Tab N/R
Package Length (mm) 10.5(Max)
Package Width (mm) 7.6(Max)
Package Height (mm) 2.35(Max)
Package Diameter (mm) N/R
Mounting Surface Mount
Package Family Name SO
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 3
Lead Finish(Plating) Au
Under Plating Material Pd over Ni


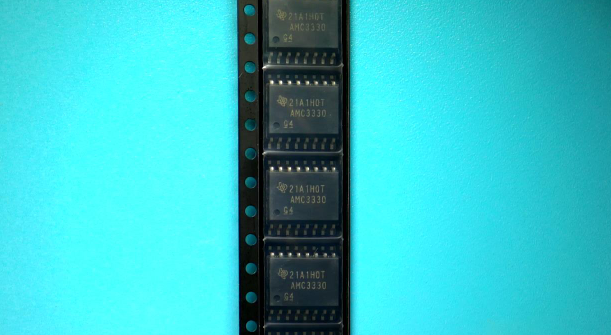

PACKAGING INFO
Packaging Tape and Reel

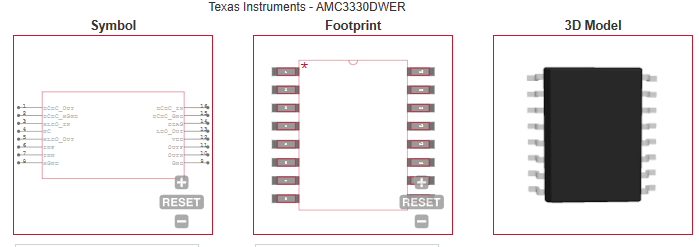

ECAD MODELS



APPLICATIONS
• Isolated voltage sensing in:– Motor drives– Photovoltaic inverters– Power delivery systems– Electricity meters– Protection relays
