• Spectral responsivity close to that of human eye
|
• Miniature ChipLED Leadfree surface-mount package
Height – 0.55 mm
Width – 1.60 mm
Depth – 1.50 mm
|
• Low sensitivity variation across various light sources
|
• Recommended operating temperature : -40°C to 85°C
|
• Vcc supply 1.8 to 5.5V
|
• Lead-free package, RoHS compliance
|
• Output linearity across wide illumination range
|
|
| CATALOG |
APDS-9005-020 COUNTRY OF ORIGIN
|
APDS-9005-020 PARAMETRIC INFO
|
APDS-9005-020 PACKAGE INFO
|
APDS-9005-020 MANUFACTURING INFO
|
APDS-9005-020 PACKAGING INFO
|
APDS-9005-020 ECAD MODELS
|
APDS-9005-020 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Germany
|
Singapore
|
|
PARAMETRIC INFO
|
| Sensor Type |
Light to Current |
| Typical Light Current (uA) |
1.1 |
| Typical Dark Current (uA) |
300 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Output Type |
Analog |
| Peak Wavelength (nm) |
500 |
| Typical Fall Time (ns) |
5000 |
| Typical Rise Time (ns) |
5000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Supplier Package |
Chip LED |
| Pin Count |
6 |
| PCB |
6 |
| Tab |
N/R |
| Package Length (mm) |
1.5 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
0.55 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.55 |
| Mounting |
Surface Mount |
| Package Family Name |
Chip LED |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
255 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
|
|
|

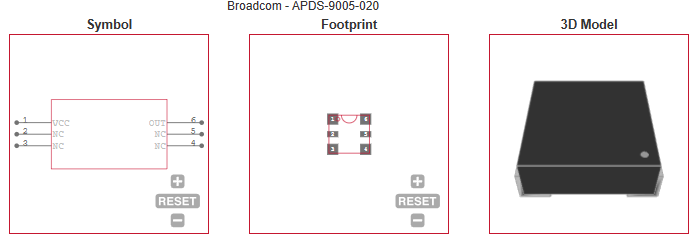

ECAD MODELS
|
|
|
APPLICATIONS
|
• Detection of ambient light to control display
backlighting
Mobile devices – Mobile phones, PDAs
Computing devices – Notebooks, Webpads
Consumer devices – TVs, Video Cameras, Digital Still
Camera
|
| • Automatic Residential and Commercial Lighting
Management |
| • Electronic Signs and Signals |
|
| |
