| • Ultrafast recovery times |
| • Soft recovery characteristics |
| • Low forward voltage |
| • Low leakage current |
| • RoHS compliant |
|
| CATALOG |

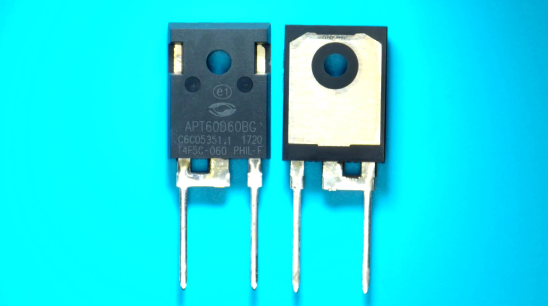

| APT60D60BG COUNTRY OF ORIGIN |
| APT60D60BG PARAMETRIC INFO |
| APT60D60BG PACKAGE INFO |
| APT60D60BG MANUFACTURING INFO |
| APT60D60BG PACKAGING INFO |
| APT60D60BG APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
| PARAMETRIC INFO |
| Type |
Switching Diode |
| Configuration |
Single |
| Peak Reverse Repetitive Voltage (V) |
600 |
| Maximum DC Reverse Voltage (V) |
600 |
| Maximum Continuous Forward Current (A) |
60 |
| Speed |
Ultra Fast Recovery Rectifier |
| Peak Forward Voltage (V) |
1.8 |
| Peak Non-Repetitive Surge Current (A) |
600 |
| Peak Reverse Current (uA) |
250 |
| Peak Reverse Recovery Time (ns) |
130(Typ) |
| Operating Junction Temperature (°C) |
-55 to 175 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
|
| |
| PACKAGE INFO |
| Supplier Package |
TO-247 |
| Basic Package Type |
Through Hole |
| Pin Count |
2 |
| Lead Shape |
Through Hole |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
10.9 |
| Package Length (mm) |
16.26(Max) |
| Package Width (mm) |
5.31(Max) |
| Package Height (mm) |
21.46(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
25.96(Max) |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Description |
Transistor Outline Package |
| Package Family Name |
TO |
| Jedec |
N/A |
|
| |
| MANUFACTURING INFO |
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
300 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| PACKAGING INFO |
|
|
| |
| APPLICATIONS |
| • Power factor correction (PFC) |
• Anti-parallel diode
- Switchmode power supply
- Inverters |
• Freewheeling diode
- Motor controllers
- Inverters/converters |
| • Snubber diode |
|
