• Low cost type.
|
• High sensitivity, Low ON resistance Can control a maximum 0.5A (AQY282S,AQW282S) load current with a 5mA input current.Low ON resistance of 2.5Ω (AQY282S,AQW282S).Stable operation because there are no metallic contact parts.
|
• Various package design (DIP4,SOP4, DIP8, SOP8 packages are available)
|
| • Low-level off state leakage current The SSR has an off state leakage current of several milliamperes, where as the PhotoMOS relay has only 100pA even with the rated load voltage of 350V(AQY280S, AQW280S). |
| |
| CATALOG |
| AQY282SX COUNTRY OF ORIGIN |
AQY282SX PARAMETRIC INFO
|
AQY282SX PACKAGE INFO
|
AQY282SX MANUFACTURING INFO
|
AQY282SX PACKAGING INFO
|
AQY282SX EACD MODELS
|
| AQY282SX APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
|
PARAMETRIC INFO
|
| Input Type |
DC |
| Maximum Input Voltage (V) |
1.5 |
| Maximum Output Voltage (V) |
60 |
| Maximum Input Current (mA) |
50 |
| Maximum Output Current (A) |
0.5 |
| I/O Isolation Voltage (V) |
1500 |
| Output Device |
MOSFET |
| Output Type |
AC|DC |
| Maximum Turn-Off Time (ms) |
2 |
| Maximum On Resistance (Ohm) |
2.5 |
| Maximum Turn-On Time (ms) |
3 |
| Maximum Off-State Leakage Current (uA) |
1 |
| Circuit Arrangement |
1 Form A |
| Maximum Power Dissipation (mW) |
650 |
| Typical Input to Output Capacitance (pF) |
0.8 |
| Minimum Input Voltage (V) |
1.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Storage Temperature (°C) |
100 |
| Minimum Storage Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
4 |
| Lead Shape |
Gull-wing |
| PCB |
4 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
4.3 |
| Package Width (mm) |
4.4 |
| Package Height (mm) |
2 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.1 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Small Outline Package |
| Package Family Name |
SO |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2a |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
SnBi |
| Under Plating Material |
AgCu |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
30 Days |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

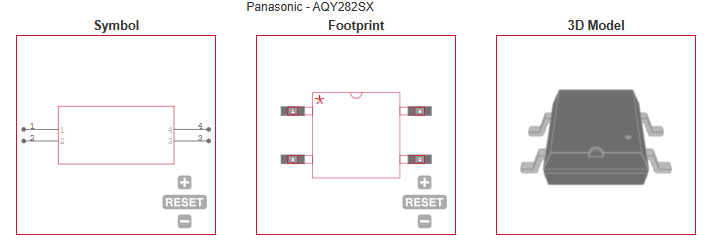

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Modem
|
| • Telephone equipment |
| • Security equipment |
| • Sensors |
| • Amusement |
|
| |
