• IEEE 802.3 compliant and UL certified
|
• High performance integrated magnetics for EMI suppression
|
• Suitable for CAT5 and CAT6 UTP cabling
|
• RoHS peak wave solder temperature rating 265°C
|
• Extended operating temperature -40 to 85°C option
|
|
| CATALOG |
ARJM11D7-502-AB-EW2 COUNTRY OF ORIGIN
|
ARJM11D7-502-AB-EW2 PARAMETRIC INFO
|
ARJM11D7-502-AB-EW2 PACKAGE INFO
|
ARJM11D7-502-AB-EW2 MANUFACTURING INFO
|
ARJM11D7-502-AB-EW2 PACKAGING INFO
|

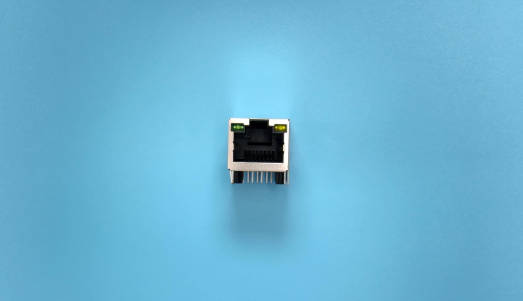

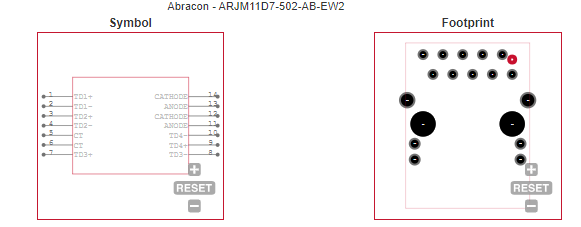

ARJM11D7-502-AB-EW2 ECAD MODELS
|
ARJM11D7-502-AB-EW2 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
RJ-45 |
| Gender |
F |
| Number of Contacts |
8 |
| Termination Method |
Solder |
| Number of Ports |
1 |
| Number of Loaded Positions |
8 |
| Housing Color |
Black |
| Housing Material |
Polybutylene Terephthalate |
| Shell Material |
Brass |
| Shell Plating |
Nickel |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Gold |
| Product Style |
Single |
| Operating Temperature (°C) |
-40 to 85 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Left/Right LED Color |
Green/Yellow |
| Integrated Magnetics |
Yes |
| Ethernet Speed |
1000BASE-T |
| Spring Option |
No |
| Maximum Terminal Width (mm) |
0.89(Typ) |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
| Number of Cores per Jack |
8 |
| Shielding |
Yes |
| Tab Direction |
Up |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
1.27 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Number of Terminals |
14 |
| Product Length (mm) |
15.9 |
| Product Depth (mm) |
21.3 |
| Product Height (mm) |
13.8 |
| Product Weight (g) |
5.7 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
Phosphor-Bronze |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
700 |
|
| |
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Single port 10/100/1G/5G Base-T LAN |
| • Network Interface Cards |
| • Switches/Routers |
| • Network attached storage |
| • Servers, NIC’s |
| • Media converters |
| |
