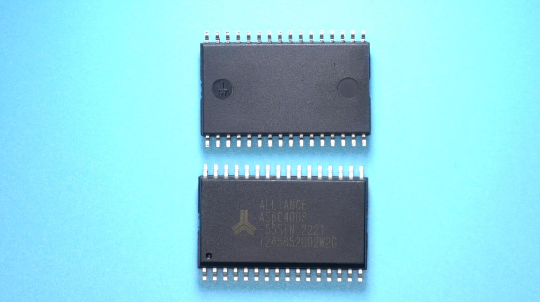

AS6C4008-55SIN Alliance Memory IC SRAM 4M PARALLEL 32SOP

Density (bit)	4M
Timing Type	Asynchronous
Data Rate Architecture	SDR
Maximum Access Time (ns)	55
Typical Operating Supply Voltage (V)	3
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Density in Bits (bit)	4194304
Number of Bits per Word (bit)	8
Number of Ports	1
Number of Words	512K
Maximum Operating Current (mA)	60
Number of I/O Lines (bit)	8
Address Bus Width (bit)	19
Minimum Operating Supply Voltage (V)	2.7
Maximum Operating Supply Voltage (V)	5.5
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150
Process Technology	CMOS

Supplier Package	SOP
Basic Package Type	Lead-Frame SMT
Pin Count	32
Lead Shape	Gull-wing
PCB	32
Tab	N/R
Pin Pitch (mm)	1.27
Package Length (mm)	20.75(Max)
Package Width (mm)	11.3
Package Height (mm)	2.82(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	3(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Plastic Small Outline Package
Package Family Name	SO
Jedec	N/A
Package Outline	Link to Datasheet

MSL	3
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	20
Number of Reflow Cycle	N/A
Standard	N/A
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Matte Sn\|SnBi
Under Plating Material	N/A
Terminal Base Material	N/A
Number of Wave Cycles	N/R

Packaging	Tray
Quantity Of Packaging	72
