• Low Power Consumption <10mA
|
• Exceptional Stability +/- 10ppm Over Temp. at -40 to +105°C
|
• Compact QFN Plastic Packaging
|
| |
| CATALOG |
| ASDMB-12.000MHZ-LC-T COUNTRY OF ORIGIN |
| ASDMB-12.000MHZ-LC-T LIFECYCLE |
ASDMB-12.000MHZ-LC-T PARAMETRIC INFO
|
ASDMB-12.000MHZ-LC-T PACKAGE INFO
|
ASDMB-12.000MHZ-LC-T MANUFACTURING INFO
|
ASDMB-12.000MHZ-LC-T PACKAGING INFO
|
| ASDMB-12.000MHZ-LC-T APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
|
PARAMETRIC INFO
|
| Type |
Clock Oscillator |
| Programmability |
No |
| Standard Frequency (MHz) |
12 |
| Frequency Stability (ppm) |
±50 |
| Output Level |
LVCMOS |
| Frequency Aging (ppm/Year) |
±5 (1st) |
| Maximum Symmetry (%) |
55 |
| Minimum Operating Supply Voltage (V) |
-0.3 |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
4 |
| Load Capacitance (pF) |
15 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
4 |
| Lead Shape |
No Lead |
| PCB |
4 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.65 |
| Package Length (mm) |
2.5 |
| Package Width (mm) |
2 |
| Package Height (mm) |
N/A |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.5 |
| Package Overall Width (mm) |
2 |
| Package Overall Height (mm) |
0.85 |
| Seated Plane Height (mm) |
0.85 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package |
| Package Family Name |
QFN |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

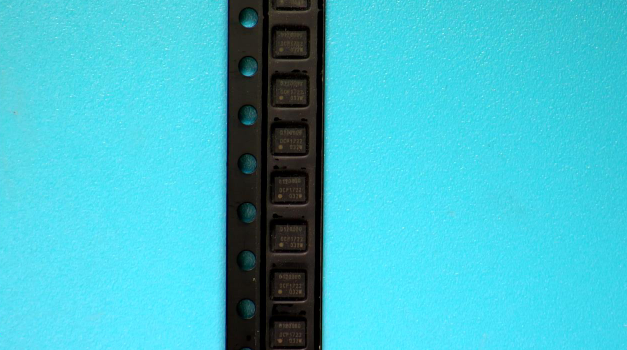

PACKAGING INFO
|
| Packaging Suffix |
-T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
|
|
| APPLICATIONS |
| • CCD Clock for VTR Camera |
| • Equipment Connected to PCs |
| • Low Profile Equipment |
| • Computers and Peripherals |
| • Portable Electronics |
| • Consumer Electronics |
| • Vibrant, Shock-Prone & Humid Environments for Industrial Equipment |
| • Demanding Military & Automotive Electronics |
| |
