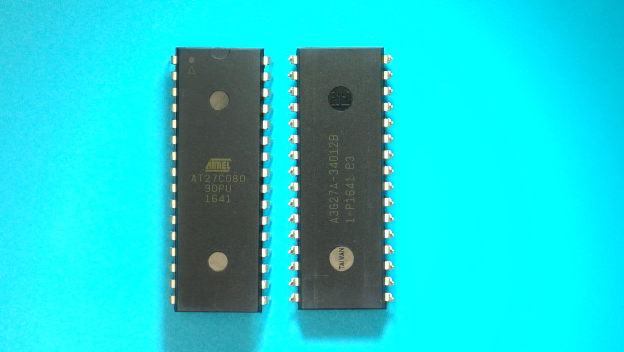

• Fast read access time – 90ns
|
• Low-power CMOS operation
– 100µA max standby
– 40mA max active at 5MHz
|
• JEDEC standard packages
– 32-lead PLCC
– 32-lead PDIP
|
| • 5V 10% supply |
| • High-reliability CMOS technology
– 2,000V ESD protection
– 200mA latchup immunity |
| • Rapid programming algorithm – 50µs/byte (typical) |
| • CMOS- and TTL-compatible inputs and outputs |
| • Integrated product identification code |
| • Industrial temperature range |
| • Green (Pb/halide-free) packaging option |
|
| CATALOG |
| AT27C080-90PU COUNTRY OF ORIGIN |
AT27C080-90PU PARAMETRIC INFO
|
AT27C080-90PU PACKAGE INFO
|
AT27C080-90PU MANUFACTURING INFO
|
AT27C080-90PU PACKAGING INFO
|
AT27C080-90PU ECAD MODELS
|
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
| Philippines |
|
PARAMETRIC INFO
|
| Density (bit) |
8M |
| Interface Type |
Parallel |
| Maximum Access Time (ns) |
90 |
| Typical Operating Supply Voltage (V) |
5 |
| Reprogramming Technique |
OTP |
| In-System Programmability |
External |
| Minimum Operating Temperature (°C) |
-40 |
| Programmability |
Yes |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Density in Bits (bit) |
8388608 |
| Maximum Operating Current (mA) |
40 |
| Programming Voltage (V) |
13 |
| Organization |
1Mx8 |
| Output Enable Access Time (ns) |
20 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Operating Supply Voltage (V) |
5 |
|
|
PACKAGE INFO
|
| Supplier Package |
PDIP W |
| Basic Package Type |
Through Hole |
| Pin Count |
32 |
| Lead Shape |
Through Hole |
| PCB |
32 |
| Tab |
N/R |
| Package Length (mm) |
42.29(Max) |
| Package Width (mm) |
13.97(Max) |
| Package Height (mm) |
4.83(Max) - 0.38(Min) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.83(Max) |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Description |
Plastic Dual In Line Package |
| Package Family Name |
DIP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
N/A |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
12 |
|
|
ECAD MODELS
|
|
|
