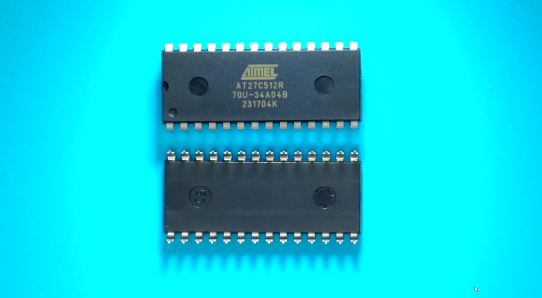

AT27C512R-70PU Microchip Technology IC EPROM 512K PARALLEL 28DIP

2023/09/7 538

CATALOG

Thailand

Philippines

Taiwan (Province of China)

Density (bit)	512K
Interface Type	Parallel
Maximum Access Time (ns)	70
Typical Operating Supply Voltage (V)	5
Reprogramming Technique	OTP
In-System Programmability	External
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Programmability	Yes
Supplier Temperature Grade	Industrial
Density in Bits (bit)	524288
Maximum Operating Current (mA)	20
Programming Voltage (V)	12.75 to 13.25
Organization	64Kx8
Output Enable Access Time (ns)	30
Minimum Operating Supply Voltage (V)	4.5
Maximum Operating Supply Voltage (V)	5.5
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150
Operating Supply Voltage (V)	5
Process Technology	CMOS

Supplier Package	PDIP W
Basic Package Type	Through Hole
Pin Count	28
Lead Shape	Through Hole
PCB	28
Tab	N/R
Pin Pitch (mm)	2.79(Max)
Package Length (mm)	37.3(Max)
Package Width (mm)	14.4(Max)
Package Height (mm)	3.94(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	5.59(Max)
Mounting	Through Hole
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Plastic Dual In Line Package Wide Body
Package Family Name	DIP
Jedec	N/A

MSL	1
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Number of Reflow Cycle	N/R
Standard	N/R
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	N/A
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Cu Alloy
Number of Wave Cycles	N/A
