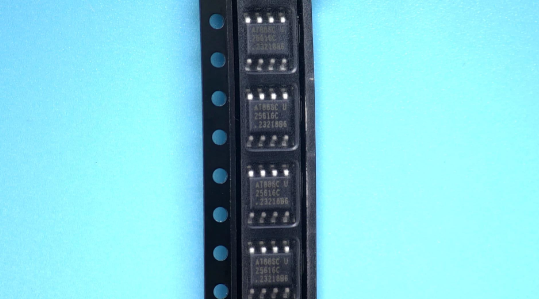

AT88SC25616C-SU COUNTRY OF ORIGIN
|
AT88SC25616C-SU PARAMETRIC INFO
|
AT88SC25616C-SU PACKAGE INFO
|
AT88SC25616C-SU MANUFACTURING INFO
|
AT88SC25616C-SU PACKAGING INFO
|
AT88SC25616C-SU ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
Thailand
|
China
|
Singapore
|
Malaysia
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Density (bit) |
256K |
| Interface Type |
Serial-2Wire |
| Maximum Operating Frequency (MHz) |
5 |
| Maximum Access Time (ns) |
35000 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Programmability |
Yes |
| Density in Bits (bit) |
262144 |
| Maximum Operating Current (mA) |
5 |
| Hardware Data Protection |
No |
| Organization |
16Kx16 |
| Data Retention (Year) |
10 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
4.98(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.48(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.98(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.73(Max) |
| Seated Plane Height (mm) |
1.73(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
100 |
|
|
