• High-performance, Low-power AVR® 8-bit Microcontroller | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Advanced RISC Architecture – 133 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers + Peripheral Control Registers – Fully Static Operation – Up to 16 MIPS Throughput at 16 MHz – On-chip 2-cycle Multiplier |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Non volatile Program and Data Memories – 32K/64K/128K Bytes of In-System Reprogrammable Flash (AT90CAN32/64/128) • Endurance: 10,000 Write/Erase Cycles – Optional Boot Code Section with Independent Lock Bits • Selectable Boot Size: 1K Bytes, 2K Bytes, 4K Bytes or 8K Bytes • In-System Programming by On-Chip Boot Program (CAN, UART, ...) • True Read-While-Write Operation – 1K/2K/4K Bytes EEPROM (Endurance: 100,000 Write/Erase Cycles) (AT90CAN32/64/128) – 2K/4K/4K Bytes Internal SRAM (AT90CAN32/64/128) – Up to 64K Bytes Optional External Memory Space – Programming Lock for Software Security |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• JTAG (IEEE std. 1149.1 Compliant) Interface – Boundary-scan Capabilities According to the JTAG Standard – Programming Flash (Hardware ISP), EEPROM, Lock & Fuse Bits – Extensive On-chip Debug Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• CAN Controller 2.0A & 2.0B - ISO 16845 Certified (1) – 15 Full Message Objects with Separate Identifier Tags and Masks – Transmit, Receive, Automatic Reply and Frame Buffer Receive Modes – 1Mbits/s Maximum Transfer Rate at 8 MHz – Time stamping, TTC & Listening Mode (Spying or Autobaud) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Peripheral Features – Programmable Watchdog Timer with On-chip Oscillator – 8-bit Synchronous Timer/Counter-0 • 10-bit Prescaler • External Event Counter • Output Compare or 8-bit PWM Output – 8-bit Asynchronous Timer/Counter-2 • 10-bit Prescaler • External Event Counter • Output Compare or 8-Bit PWM Output • 32Khz Oscillator for RTC Operation – Dual 16-bit Synchronous Timer/Counters-1 & 3 • 10-bit Prescaler • Input Capture with Noise Canceler • External Event Counter • 3-Output Compare or 16-Bit PWM Output • Output Compare Modulation – 8-channel, 10-bit SAR ADC • 8 Single-ended Channels • 7 Differential Channels • 2 Differential Channels With Programmable Gain at 1x, 10x, or 200x – On-chip Analog Comparator – Byte-oriented Two-wire Serial Interface – Dual Programmable Serial USART – Master/Slave SPI Serial Interface • Programming Flash (Hardware ISP) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Special Microcontroller Features – Power-on Reset and Programmable Brown-out Detection – Internal Calibrated RC Oscillator – 8 External Interrupt Sources – 5 Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down & Standby – Software Selectable Clock Frequency – Global Pull-up Disable |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• I/O and Packages – 53 Programmable I/O Lines – 64-lead TQFP and 64-lead QFN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Operating Voltages: 2.7 - 5.5V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Operating temperature: Industrial (-40°C to +85°C) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
• Maximum Frequency: 8 MHz at 2.7V, 16 MHz at 4.5V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CATALOG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AT90CAN64-16AUR COUNTRY OF ORIGIN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AT90CAN64-16AUR PARAMETRIC INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AT90CAN64-16AUR PACKAGE INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AT90CAN64-16AUR MANUFACTURING INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

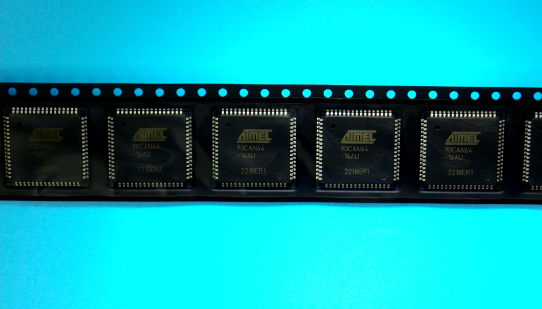

AT90CAN64-16AUR PACKAGING INFO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

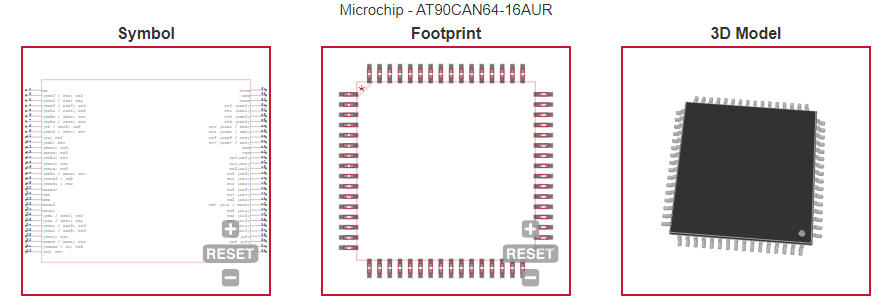

AT90CAN64-16AUR ECAD MODELS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AT90CAN64-16AUR FUNCYIONAL BLOCK DIAGRAM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
COUNTRY OF ORIGIN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Korea (Republic of) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Philippines | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
