• Crypto Element Devices with Secure Hardware-based Key Storage
|
• Performs High-Speed Public Key (PKI) Algorithms
– ECDSA: FIPS186-3 Elliptic Curve Digital Signature Algorithm
|
• NIST Standard P256, B283 and K283 Elliptic Curve Support
|
• SHA-256 Hash Algorithm with HMAC Option
|
• Host and Client Operations
|
• 256-bit and 283-bit Key Length
|
|
| CATALOG |
ATECC108A-MAHDA-T COUNTRY OF ORIGIN
|
ATECC108A-MAHDA-T PARAMETRIC INFO
|
ATECC108A-MAHDA-T PACKAGE INFO
|
ATECC108A-MAHDA-T MANUFACTURING INFO
|
ATECC108A-MAHDA-T PACKAGING INFO
|
ATECC108A-MAHDA-T ECAD MODELS
|
ATECC108A-MAHDA-T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Tradename |
CryptoAuthentication™ |
| Encryption Standard |
SHA-256 |
| Minimum Endurance (Cycles) |
400000 |
| Data Retention (Year) |
10@55°C|30@35°C |
| Interface Type |
I2C |
| Key Size |
256bit|283bit |
| Number of Keys |
16 |
| Memory Size |
10KB |
| Minimum Operating Supply Voltage (V) |
2 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Process Technology |
CMOS |
| Programmability |
Yes |
|
|

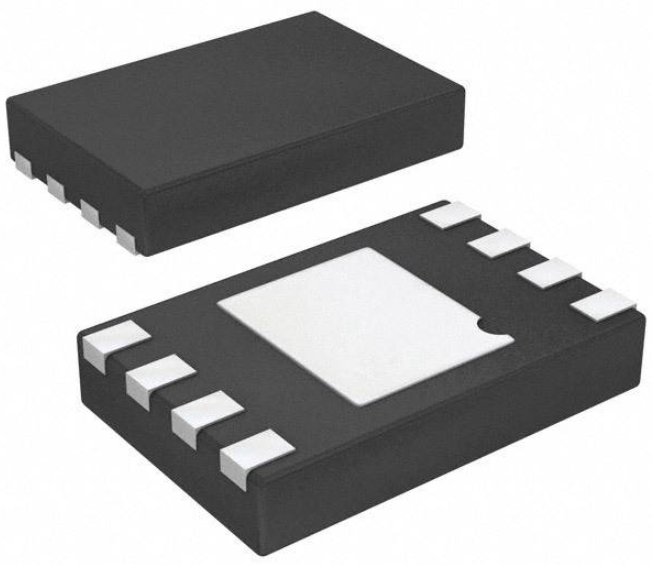

PACKAGE INFO
|
| Supplier Package |
UDFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
No Lead |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
2 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.53 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.55 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Micro Dual Flat Package No Lead, Exposed Pad |
| Package Family Name |
DFN |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

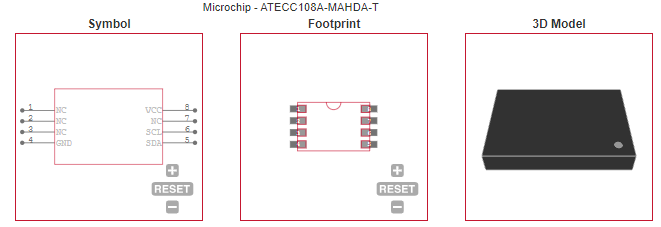

ECAD MODELS
|
 |
|
| APPLICATIONS |
| • Secure Download and Boot |
| • Ecosystem Control |
| • Message Security |
| • Anti-Cloning |
| |
