• Advanced RISC Architecture
|
• High Endurance Non-volatile Memory Segments
|
• Atmel® QTouch® Library Support
|
• I/O and Packages
– 23 Programmable I/O Lines
– 28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF
|
• Operating Voltage:
– 2.7 - 5.5V for ATmega48/88/168
– 1.8 - 5.5V for ATmega48V/88V/168V
|
• Temperature Range:
– -40°C to 85°C
|
• Speed Grade:
– ATmega48/88/168: 0 - 10MHz @ 2.7V - 5.5V, 0 - 20MHz @ 4.5V - 5.5V
– ATmega48V/88V/168V: 0 - 4MHz @ 1.8V - 5.5V, 0 - 10MHz @ 2.7V - 5.5V
|
• Power Consumption at 1MHz, 1.8V, 25°C
– Active Mode: 0.3mA
– Power-down Mode: 0.1μA
– Power-save Mode: 0.8μA (Including 32kHz RTC)
|
|
| CATALOG |
| ATmega48V-10MMU COUNTRY OF ORIGIN |
ATmega48V-10MMU PARAMETRIC INFO
|
ATmega48V-10MMU PACKAGE INFO
|
ATmega48V-10MMU MANUFACTURING INFO
|
ATmega48V-10MMU PACKAGING INFO
|
ATmega48V-10MMU ECAD MODELS
|
ATmega48V-10MMU FUNCTIONAL BLOCK DIAGRAM
|
|
COUNTRY OF ORIGIN
|
| Korea (Republic of) |
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Data Bus Width (bit) |
8 |
| Family Name |
ATmega |
| Device Core |
AVR |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
10 |
| Program Memory Type |
Flash |
| Program Memory Size |
4KB |
| RAM Size |
512B |
| Maximum CPU Frequency (MHz) |
10 |
| Number of Programmable I/Os |
23 |
| Number of Timers |
3 |
| ADC Channels |
8 |
| ADC Resolution (bit) |
10 |
| Core Architecture |
AVR |
| Number of ADCs |
Single |
| PWM |
6 |
| Watchdog |
1 |
| Analog Comparators |
1 |
| Interface Type |
I2C/SPI/USART |
| Programmability |
Yes |
| SPI |
2 |
| I2C |
1 |
| I2S |
0 |
| UART |
0 |
| USART |
1 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
MLF EP |
| Pin Count |
28 |
| PCB |
28 |
| Tab |
N/R |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
0.88 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.9 |
| Mounting |
Surface Mount |
| Package Description |
Micro Lead Frame, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|

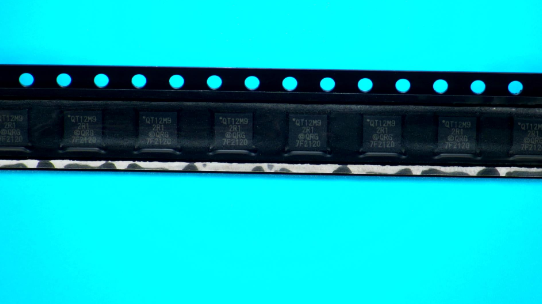

PACKAGING INFO
|
|
|
|

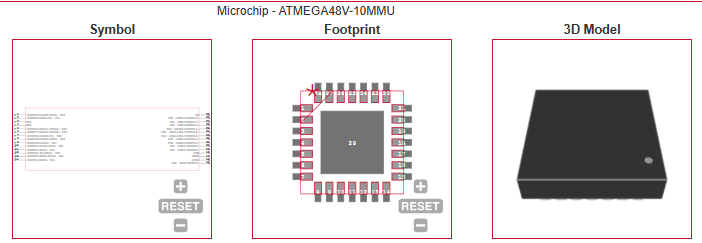

ECAD MODELS
|
|
|

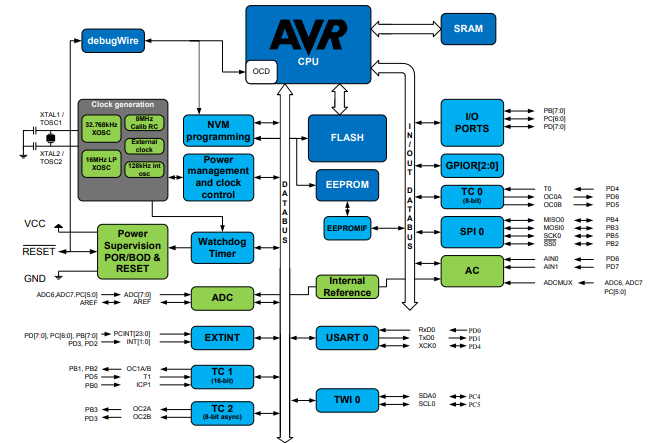

FUNCTIONAL BLOCK DIAGRAM
|
|
|
