• High performance, low power Atmel® AVR® 8-bit microcontroller
|
• On-chip debug interface (debugWIRE)
|
• CAN 2.0A/B with six message objects - ISO 16845 certified
|
• LIN 2.1 and 1.3 controller or 8-bit UART
|
• Operating voltage: 2.7V - 5.5V
|
• Extended operating temperature:– -40°C to +85°C
|
|
| CATALOG |
ATMEGA64M1-AU COUNTRY OF ORIGIN
|
ATMEGA64M1-AU PARAMETRIC INFO
|
ATMEGA64M1-AU PACKAGE INFO
|
ATMEGA64M1-AU MANUFACTURING INFO
|
ATMEGA64M1-AU PACKAGING INFO
|

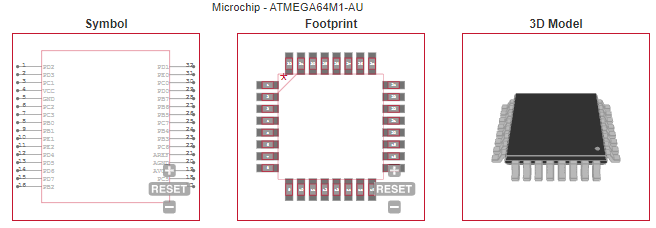

ATMEGA64M1-AU ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Family Name |
ATmega |
| Data Bus Width (bit) |
8 |
| Device Core |
AVR |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
16 |
| Program Memory Type |
Flash |
| Program Memory Size |
64KB |
| RAM Size |
4KB |
| Maximum CPU Frequency (MHz) |
16 |
| Number of Programmable I/Os |
27 |
| Number of Timers |
2 |
| ADC Channels |
11 |
| DAC Channels |
1 |
| ADC Resolution (bit) |
10 |
| Core Architecture |
AVR |
| Number of ADCs |
1 |
| Number of DACs |
1 |
| DAC Resolution (bit) |
10 |
| PWM |
1 |
| Watchdog |
1 |
| Analog Comparators |
4 |
| Special Features |
CAN Controller |
| Interface Type |
CAN/LIN/SPI/UART/USART |
| Programmability |
Yes |
| SPI |
1 |
| I2C |
0 |
| I2S |
0 |
| UART |
1 |
| USART |
1 |
| CAN |
1 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
3.3|5 |
| Maximum Storage Temperature (°C) |
175 |
| Minimum Storage Temperature (°C) |
-65 |
|
|

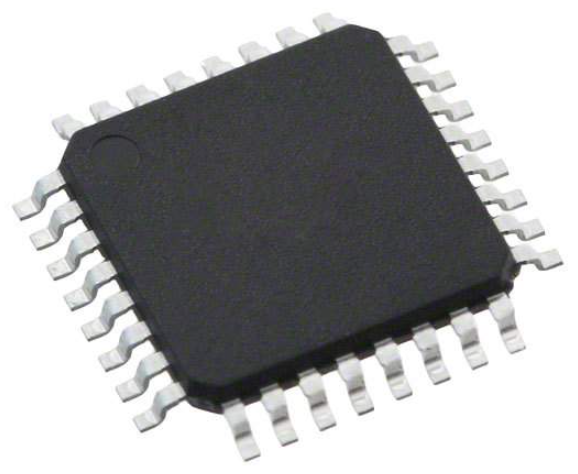

PACKAGE INFO
|
| Supplier Package |
TQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
Gull-wing |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026ABA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
250 |
|
|
ECAD MODELS
|
|
|
