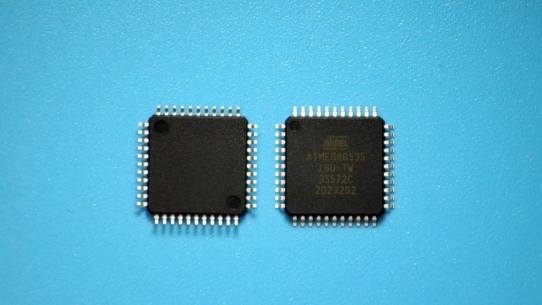

| ATmega8535-16AU COUNTRY OF ORIGIN |
ATmega8535-16AU PARAMETRIC INFO
|
ATmega8535-16AU PACKAGE INFO
|
ATmega8535-16AU MANUFACTURING INFO
|
ATmega8535-16AU PACKAGING INFO
|
ATmega8535-16AU EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Philippines |
| Thailand |
| Singapore |
| Korea (Republic of) |
| China |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Family Name |
ATmega |
| Data Bus Width (bit) |
8 |
| Device Core |
AVR |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
16 |
| Program Memory Type |
Flash |
| Program Memory Size |
8KB |
| RAM Size |
512B |
| Maximum CPU Frequency (MHz) |
16 |
| Number of Programmable I/Os |
32 |
| Number of Timers |
3 |
| ADC Channels |
8 |
| ADC Resolution (bit) |
10 |
| Core Architecture |
AVR |
| Number of ADCs |
Single |
| PWM |
4 |
| Watchdog |
1 |
| Analog Comparators |
1 |
| Interface Type |
SPI/TWI/USART |
| Programmability |
Yes |
| SPI |
1 |
| I2C |
0 |
| I2S |
0 |
| UART |
0 |
| USART |
1 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
TQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
44 |
| Lead Shape |
Gull-wing |
| PCB |
44 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
10.1(Max) |
| Package Width (mm) |
10.1(Max) |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
12.25(Max) |
| Package Overall Width (mm) |
12.25(Max) |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026ACB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
160 |
|
|

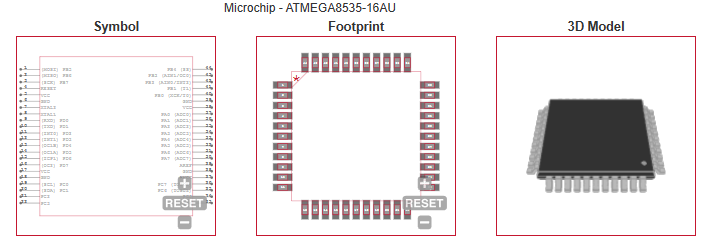

ECAD MODELS
|
|
| |
