• High Performance, Low Power AVR® 8-Bit Microcontroller
|
• Advanced RISC Architecture
– 120 Powerful Instructions – Most Single Clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 20 MIPS Throughput at 20 MHz
|
• Data and Non-volatile Program and Data Memories
– 2/4K Bytes of In-System Self Programmable Flash
• Endurance 10,000 Write/Erase Cycles
– 128/256 Bytes In- System Programmable EEPROM
• Endurance: 100,000 Write/Erase Cycles
– 128/256 Bytes Internal SRAM
– Programming Lock for Flash Program and EEPROM Data Security
|
• I/O and Packages
– 18 Programmable I/O Lines
– 20-pin PDIP, 20-pin SOIC, 20-pad MLF/VQFN
|
• Operating Voltage
– 1.8 – 5.5V
|
• Speed Grades
– 0 – 4 MHz @ 1.8 – 5.5V
– 0 – 10 MHz @ 2.7 – 5.5V
– 0 – 20 MHz @ 4.5 – 5.5V
|
• Industrial Temperature Range: -40°C to +85°C
|
• Low Power Consumption
– Active Mode
• 190 µA at 1.8V and 1MHz
– Idle Mode
• 24 µA at 1.8V and 1MHz
– Power-down Mode
• 0.1 µA at 1.8V and +25°C
|
|
| CATALOG |
ATtiny2313A-PU COUNTRY OF ORIGIN
|
ATtiny2313A-PU PARAMETRIC INFO
|
ATtiny2313A-PU PACKAGE INFO
|
ATtiny2313A-PU MANUFACTURING INFO
|
ATtiny2313A-PU PACKAGING INFO
|
ATtiny2313A-PU ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
PARAMETRIC INFO
|
| Data Bus Width (bit) |
8 |
| Family Name |
ATtiny |
| Device Core |
AVR |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
20 |
| Program Memory Type |
Flash |
| Program Memory Size |
2KB |
| RAM Size |
128B |
| Maximum CPU Frequency (MHz) |
20 |
| Number of Programmable I/Os |
18 |
| Number of Timers |
2 |
| Core Architecture |
AVR |
| PWM |
2 |
| Watchdog |
1 |
| Analog Comparators |
1 |
| Interface Type |
SPI/USART/USI |
| Programmability |
Yes |
| SPI |
2 |
| I2C |
0 |
| I2S |
0 |
| UART |
0 |
| USART |
1 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|

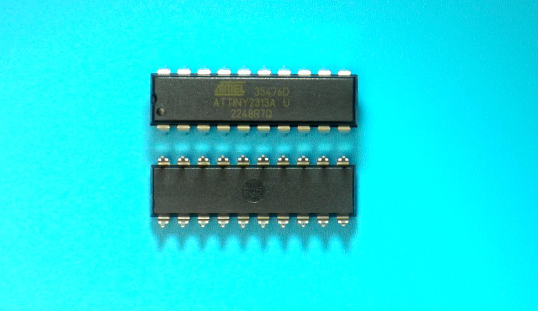

PACKAGE INFO
|
| Supplier Package |
PDIP |
| Basic Package Type |
Through Hole |
| Pin Count |
20 |
| Lead Shape |
Through Hole |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.79(Max) |
| Package Length (mm) |
26.9(Max) |
| Package Width (mm) |
7.11(Max) |
| Package Height (mm) |
5.33(Max) - 0.38(Min) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
5.33(Max) |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Description |
Plastic Dual In Line Package |
| Package Family Name |
DIP |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
18 |
|
|

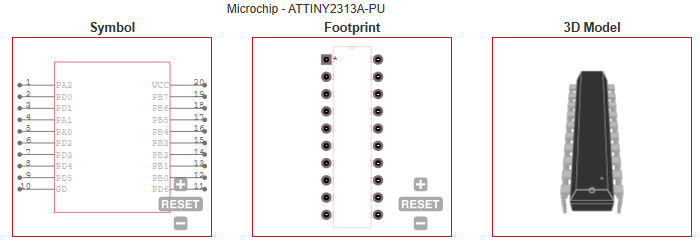

ECAD MODELS
|
|
|
