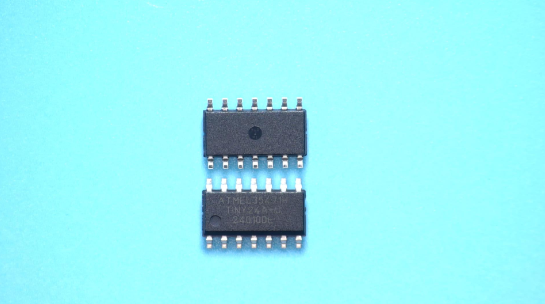

• High Performance, Low Power AVR® 8-bit Microcontroller
|
• Advanced RISC Architecture– 120 Powerful Instructions – Most Single Clock Cycle Execution– 32 x 8 General Purpose Working Registers– Fully Static Operation
|
• High Endurance, Non-volatile Memory Segments– 2K/4K/8K Bytes of In-System, Self-programmable Flash Program Memory• Endurance: 10,000 Write/Erase Cycles– 128/256/512 Bytes of In-System Programmable EEPROM• Endurance: 100,000 Write/Erase Cycles– 128/256/512 Bytes of Internal SRAM– Data Retention: 20 years at 85°C / 100 years at 25°C– Programming Lock for Self-programming Flash & EEPROM Data Security
|
| • I/O and Packages– Available in 20-pin WQFN/VQFN, 14-pin SOIC, 14-pin PDIP and 15-ball UFBGA– Twelve Programmable I/O Lines |
| • Operating Voltage:– 1.8 – 5.5V |
| |
| CATALOG |
| ATtiny24A-SSU COUNTRY OF ORIGIN |
ATtiny24A-SSU PARAMETRIC INFO
|
ATtiny24A-SSU PACKAGE INFO
|
ATtiny24A-SSU MANUFACTURING INFO
|
ATtiny24A-SSU PACKAGING INFO
|
ATtiny24A-SSU EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
| Thailand |
|
PARAMETRIC INFO
|
| Family Name |
ATtiny |
| Data Bus Width (bit) |
8 |
| Device Core |
AVR |
| Instruction Set Architecture |
RISC |
| Maximum Clock Rate (MHz) |
20 |
| Program Memory Type |
Flash |
| Program Memory Size |
2KB |
| RAM Size |
128B |
| Maximum CPU Frequency (MHz) |
20 |
| Number of Programmable I/Os |
12 |
| Number of Timers |
2 |
| ADC Channels |
8 |
| ADC Resolution (bit) |
10 |
| Core Architecture |
AVR |
| Number of ADCs |
Single |
| PWM |
2 |
| Watchdog |
1 |
| Analog Comparators |
1 |
| Interface Type |
SPI/USI |
| Programmability |
Yes |
| SPI |
1 |
| I2C |
0 |
| I2S |
0 |
| UART |
0 |
| USART |
0 |
| CAN |
0 |
| USB |
0 |
| Ethernet |
0 |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Temperature Flag |
Opr |
| Supplier Temperature Grade |
Industrial |
| Operating Supply Voltage (V) |
2.5|3.3|5 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
14 |
| Lead Shape |
Gull-wing |
| PCB |
14 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
8.74(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
57 |
|
|

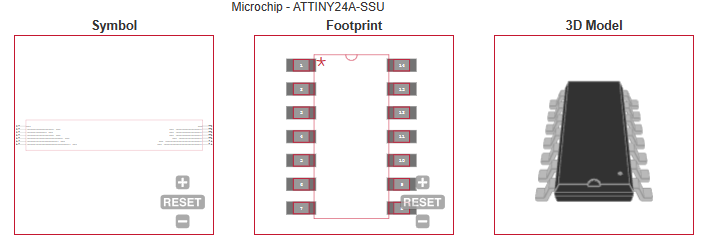

ECAD MODELS
|
|
| |
