| • FMCW transceiver |
| • Built-in calibration and self-test (monitoring) |
| • C674x DSP for FMCW signal processing |
| • On-chip memory: 1.5MB |
| • Cortex-R4F microcontroller for object tracking and
classification, AUTOSAR, and interface contro |
| • Integrated peripherals |
| • Host interface |
| • Other interfaces available to user application
|
| • Device Security (on select part numbers)
|
| • Functional Safety-Compliant |
| • AEC-Q100 qualified
|
| • Device advanced features
|
| • Power management |
| • Clock source |
| • Easy hardware design |
| • Operating Conditions |
|
| CATALOG |
| AWR1642ABIGABLRQ1 COUNTRY OF ORIGIN |
| AWR1642ABIGABLRQ1 PARAMETRIC INFO |
| AWR1642ABIGABLRQ1 PACKAGE INFO |
| AWR1642ABIGABLRQ1 MANUFACTURING INFO |
| AWR1642ABIGABLRQ1 PACKAGING INFO |
| AWR1642ABIGABLRQ1 ECAD MODELS |
| AWR1642ABIGABLRQ1 FUNCTIONAL BLOCK DIAGRAM |
| AWR1642ABIGABLRQ1 APPLICATION |
|
| COUNTRY OF ORIGIN |
Korea
|
|
| PARAMETRIC INFO |
| Category |
Radar Sensor |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Typical Operating Supply Voltage (V) |
1.2 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Maximum Operating Supply Voltage (V) |
1.32 |
| Minimum Operating Supply Voltage (V) |
1.14 |
|
| |
| PACKAGE INFO |
| Supplier Package |
FC/CSP |
| Pin Count |
161 |
| PCB |
161 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
10.5(Max) |
| Package Width (mm) |
10.5(Max) |
| Package Height (mm) |
0.8(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.17(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
CSP |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
3 |
| Lead Finish(Plating) |
SnAgCu |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |

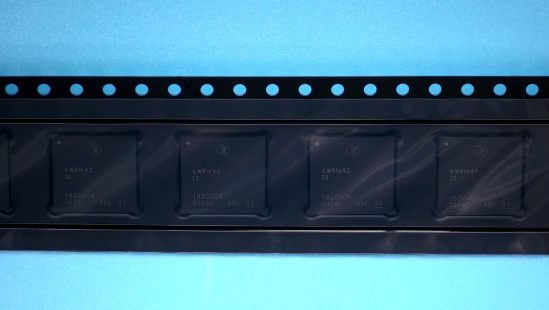

Tape and Reel |
| Quantity Of Packaging |
1000 |
|
| |

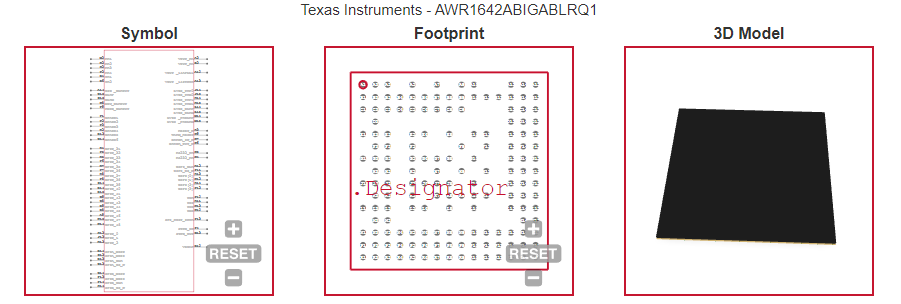

| ECAD MODELS |
 |
|

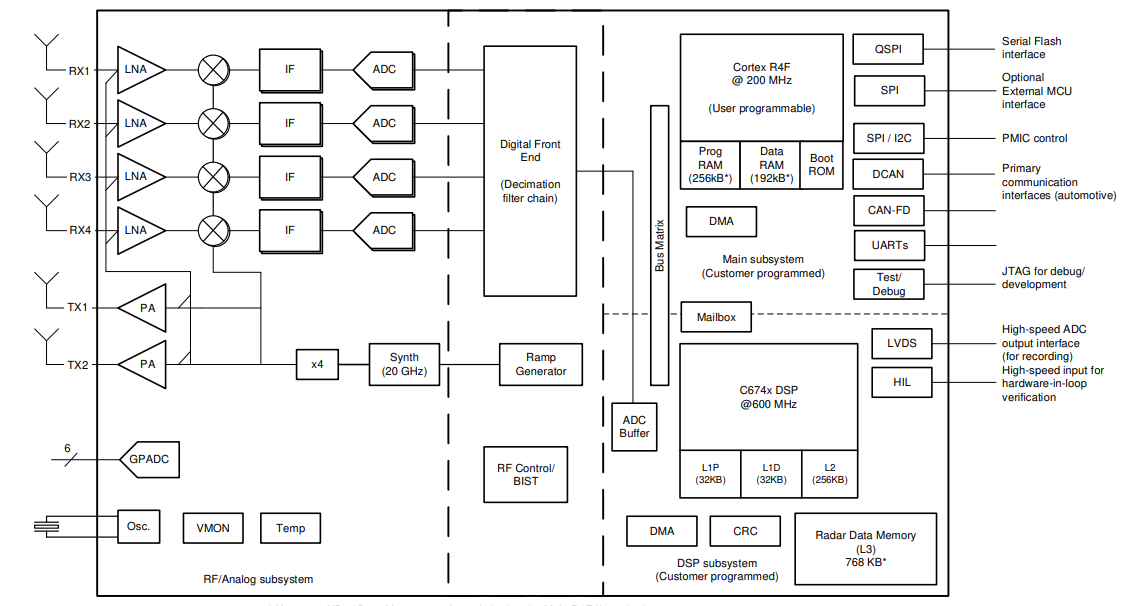

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATION |
| • Blind spot detection
|
| • Lane change assistance |
| • Cross traffic alert |
| • Parking assistance |
| • Occupancy detection |
| • Gesture recognition |
|
