| CATALOG |
AX5043-1-TW30 COUNTRY OF ORIGIN
|
| AX5043-1-TW30 LIFECYCLE |
AX5043-1-TW30 PARAMETRIC INFO
|
AX5043-1-TW30 PACKAGE INFO
|
AX5043-1-TW30 MANUFACTURING INFO
|
AX5043-1-TW30 PACKAGING INFO
|
| AX5043-1-TW30 FUNCTIONAL BLOCK DIAGRAM |
AX5043-1-TW30 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Thailand |
| Philippines |
|
| LIFECYCLE |
Obsolete
Dec 30,2022
|
|
PARAMETRIC INFO
|
| Category |
Transceiver |
| Maximum RF Operating Frequency Range (MHz) |
0.04 to 100 |
| Modulation Technique |
ASK/FSK |
| Maximum Data Rate |
125Kbps |
| Maximum Power Dissipation (mW) |
800 |
| Operating Band Frequency (MHz) |
27 to 1050 |
| Maximum RF Operating Frequency (MHz) |
1050 |
| Typical Transmitter Output Power (dBm) |
16 |
| Control Interface |
Serial (SPI) |
| Typical Receiver Current (mA) |
9.5 |
| Typical Transmitter Current (mA) |
48 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Typical Operating Supply Voltage |
3.3V |
| Minimum Operating Supply Voltage |
1.8V |
| Operating Supply Voltage |
3.3V |
| Maximum Operating Supply Voltage |
3.6V |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
No Lead |
| PCB |
28 |
| Tab |
N/R |
| Package Length (mm) |
5 |
| Package Width (mm) |
5 |
| Package Height (mm) |
0.85(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

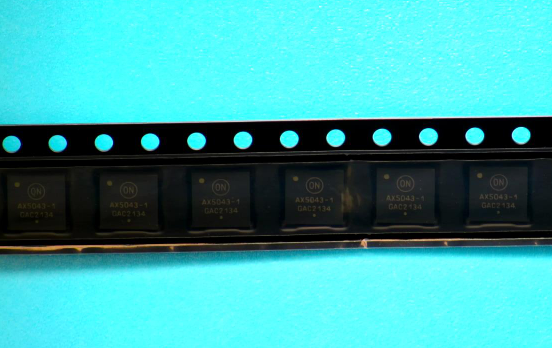

PACKAGING INFO
|
| Packaging Suffix |
TW |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7|13 |
| Reel Width (mm) |
12.4(Min) |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

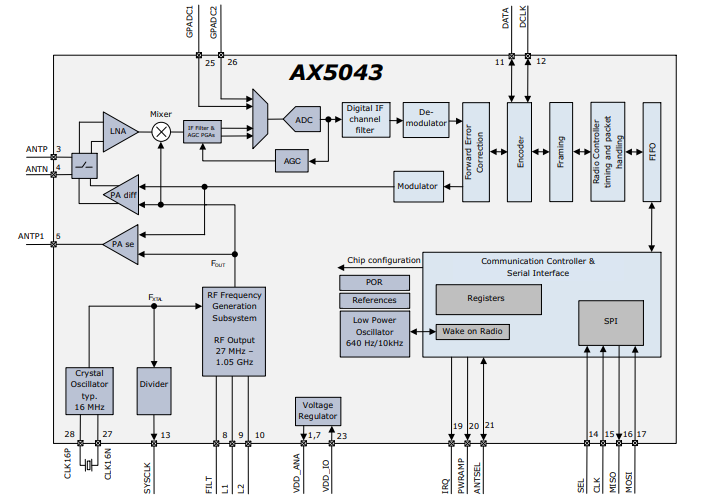

FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• Internet of Things
|
| • Automatic Meter Reading (AMR)
|
• Security Applications
|
• Building Automation
|
• Wireless Networks
|
| • Messaging Paging |
| • Compatible with: Wireless M−Bus, POCSAG, FLEX,
KNX, Sigfox, Z−Wave, enocean |
| • Regulatory Regimes: EN 300 220 V2.3.1 including the
Narrow−band 12.5 kHz, 20 kHz and 25 kHz
Definitions; EN 300 422; FCC Part 15.247; FCC Part
15.249; FCC Part 90 6.25 kHz, 12.5 kHz and 25 kHz |
|
| |
