B06P-VL PARAMETRIC INFO
|
B06P-VL PACKAGE INFO
|
B06P-VL MANUFACTURING INFO
|
B06P-VL PACKAGING INFO
|
B06P-VL ECAD MODELS
|
|
PARAMETRIC INFO
|
| Type |
Shrouded Header |
| Gender |
HDR |
| Number of Contacts |
6 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
20 |
| Maximum Voltage Rating |
600VDC|600VAC |
| Housing Material |
Nylon 6/6 |
| Housing Color |
White |
| Contact Material |
Copper Alloy |
| Contact Plating |
Tin |
| Number of Rows |
2 |
| Row Spacing (mm) |
8.28 |
| Maximum Contact Resistance (mOhm) |
10 |
| Wire Size (AWG) |
12-22 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-25 to 90 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
90 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
6.2 |
| Body Orientation |
Straight |
| Mounting |
Through Hole |
| Product Length (mm) |
19.6 |
| Product Depth (mm) |
18 |
| Product Height (mm) |
16.4 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

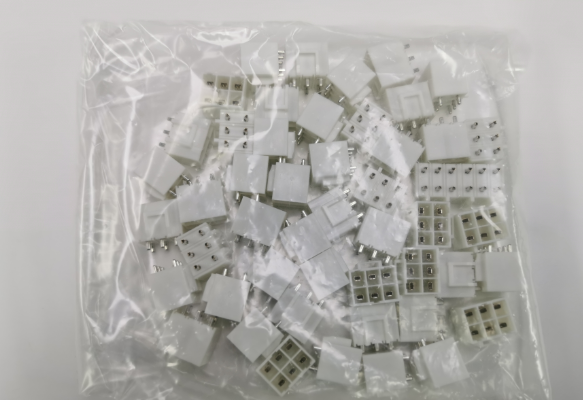

PACKAGING INFO
|
| Packaging |
Box |
| Quantity Of Packaging |
50 |
|
|

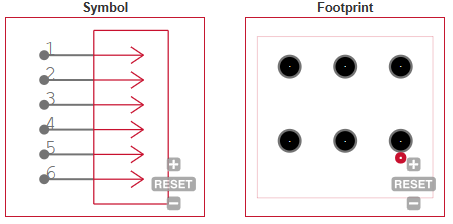

ECAD MODELS
|
|
|
