• High pulse strength
|
• High contact reliability
|
• RoHS-compatible
|
• Very low inductance
|
• Halogen free capacitors available on request
|
• AEC-Q200 compliant
|
|
| CATALOG |
B32654A4155K000 COUNTRY OF ORIGIN
|
B32654A4155K000 PARAMETRIC INFO
|
B32654A4155K000 PACKAGE INFO
|
B32654A4155K000 MANUFACTURING INFO
|
B32654A4155K000 PACKAGING INFO
|
B32654A4155K000 ECAD MODELS
|
B32654A4155K000 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Capacitance Value |
1.5uF |
| Voltage |
400VDC|200VAC |
| Tolerance |
10% |
| Type |
Pulse |
| Dielectric |
PP |
| Construction |
Wound |
| Maximum Operating Temperature (°C) |
110 |
| Minimum Operating Temperature (°C) |
-40 |
| Lead Diameter (mm) |
0.8 |
| Operating Temperature (°C) |
-40 to 110 |
| DC Rated Voltage (VDC) |
400 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| AC Rated Voltage (VAC) |
200 |
| Lead Length (mm) |
6 |
| Wire Form |
Straight |
| Polarity |
Non Polar |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
Radial |
| Package/Case |
N/R |
| Terminal Pitch (mm) |
27.5 |
| Product Length (mm) |
31.5(Max) |
| Product Depth (mm) |
12.5(Max) |
| Product Height (mm) |
21.5(Max) |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
21.5(Max) |
| Product Weight (g) |
13 |
| Size (mm) |
31.5 X 12.5 X 21.5 |
| Maximum Product Length (mm) |
31.5 |
| Maximum Product Depth (mm) |
12.5 |
| Maximum Product Height (mm) |
21.5 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu|CuFe |
| Number of Wave Cycles |
1 |
|
|
| PACKAGING INFO |
| Packaging Suffix |
000 |
| Packaging |
Bulk |
| Quantity Of Packaging |
1120(Min) |
| Packaging Document |
Link to Datasheet |
|
| |

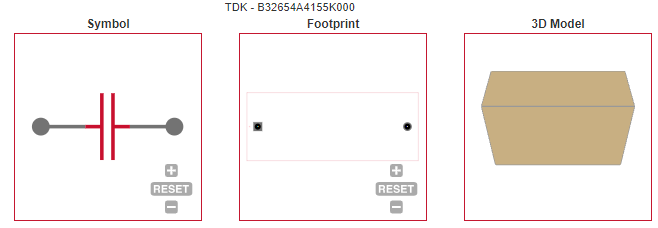

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Electronic ballasts |
| • Switch-mode power supplies |
| • IGBT |
| • Snubbering |
| |
