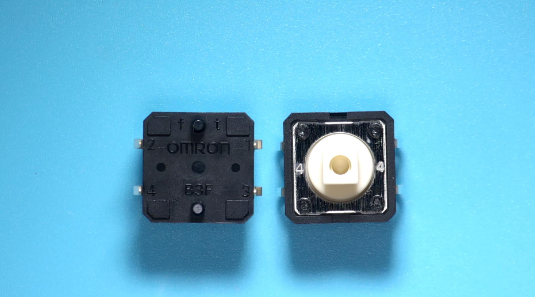

B3F-4050 COUNTRY OF ORIGIN
|
B3F-4050 PARAMETRIC INFO
|
B3F-4050 PACKAGE INFO
|
B3F-4050 MANUFACTURING INFO
|
B3F-4050 PACKAGING INFO
|

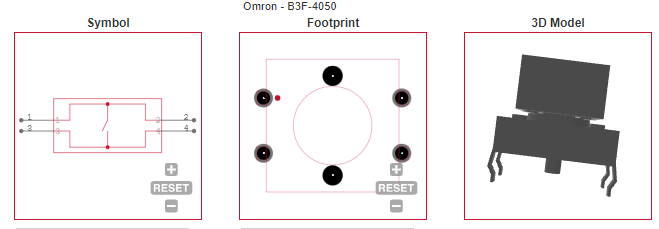

B3F-4050 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Miniature |
| Pole Throw Configuration |
SPST |
| Switch Configuration |
N.O. |
| Maximum Current Rating (A) |
0.05@24VDC |
| Maximum DC Voltage Rating (V) |
24 |
| Electrical Life (Cycles) |
3000000 |
| Actuator Style |
Projected Plunger |
| Operating Force (N) |
1.27 |
| Ground Terminal |
No |
| Contact Plating |
Gold |
| Dielectric Strength |
500VAC |
| Maximum Contact Resistance (mOhm) |
100 |
| Minimum Insulation Resistance (MOhm) |
100 |
| Actuator Color |
Blue |
| Actuator Length (mm) |
3 |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Operating Temperature (°C) |
-25 |
| IP Rating |
IP00 |
| Body Length (mm) |
12 |
| Body Depth (mm) |
12 |
| Body Height (mm) |
3.5 |
| Terminal Length (mm) |
3.5 |
| Number of Rows |
2 |
| Row Spacing (mm) |
12.5 |
| Operating Temperature (°C) |
-25 to 70 |
|
|
PACKAGE INFO
|
| Termination Style |
PC Pins |
| Mounting |
Through Hole |
| Body Orientation |
Straight |
| Product Length (mm) |
12 |
| Product Depth (mm) |
13.8 |
| Product Height (mm) |
7.3 |
| Product Weight (g) |
0.85 |
| Terminal Pitch (mm) |
5 |
| Number of Terminals |
4 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Bag |
| Quantity Of Packaging |
100 |
| Packaging Document |
Link to Datasheet |
|
|
