• Provide a sharp click and high durability.
|

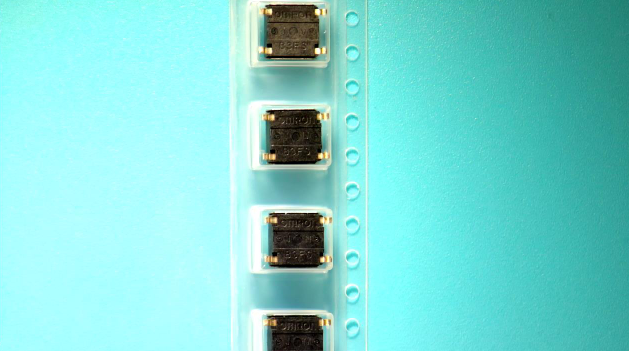

• Tape packing style also available
|
• B32-series Key Tops mount to models with projected plungers.
|
• A small package containing 100 embossed taping reels is available,in addition to the standard package. |
|
CATALOG |
B3FS-1010P COUNTRY OF ORIGIN |
B3FS-1010P PARAMETRIC INFO
|
B3FS-1010P PACKAGE INFO
|
B3FS-1010P MANUFACTURING INFO
|
B3FS-1010P PACKAGING INFO
|
B3FS-1010P EACD MODELS
|
|
COUNTRY OF ORIGIN |
China |
|
PARAMETRIC INFO
|
Pole Throw Configuration |
SPST |
Switch Configuration |
N.O. |
Maximum Current Rating (A) |
0.05@24VDC |
Maximum DC Voltage Rating (V) |
24 |
Electrical Life (Cycles) |
1000000 |
Actuator Style |
Flat Round Button |
Operating Force (N) |
0.98 |
Ground Terminal |
No |
Contact Plating |
Silver |
Dielectric Strength |
250VAC |
Maximum Contact Resistance (mOhm) |
100 |
Minimum Insulation Resistance (MOhm) |
100 |
Actuator Color |
Black |
Actuator Length (mm) |
1.7 |
Maximum Operating Temperature (°C) |
70 |
Minimum Operating Temperature (°C) |
-25 |
IP Rating |
IP00 |
Body Length (mm) |
6.3 |
Body Depth (mm) |
6 |
Body Height (mm) |
2.6 |
Terminal Length (mm) |
1 |
Number of Rows |
2 |
Row Spacing (mm) |
8 |
Operating Temperature (°C) |
-25 to 70 |
|
|
PACKAGE INFO
|
Termination Style |
Gull Wing |
Mounting |
Surface Mount |
Body Orientation |
Straight |
Product Length (mm) |
6.3 |
Product Depth (mm) |
8 |
Product Height (mm) |
4.3 |
Product Weight (g) |
0.2 |
Terminal Pitch (mm) |
4.5 |
Number of Terminals |
4 |
|
|
MANUFACTURING INFO
|
MSL |
N/A |
Maximum Reflow Temperature (°C) |
250 |
Reflow Solder Time (Sec) |
60 |
Reflow Temp. Source |
Link to Datasheet |
Maximum Wave Temperature (°C) |
N/R |
Wave Solder Time (Sec) |
N/R |
Lead Finish(Plating) |
N/A |
Under Plating Material |
N/A |
Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
Packaging Suffix |
P |
Packaging |
Tape and Reel |
Quantity Of Packaging |
1000(Min) |
Packaging Document |
Link to Datasheet |
Tape Type |
Embossed |
|
|
