• Sealed construction conforming to IP67 (IEC-60529)provides high contact reliability in locations exposed to dust or water. (* Excluding the terminal section.)
|
• Surface-mounting terminals for high-density mounting.
|
• Ground terminal available to protect against static electricity.
|
• Available in embossed taping packages for automatic mounting.
|
|
| CATALOG |
B3S-1000P COUNTRY OF ORIGIN
|
B3S-1000P PARAMETRIC INFO
|
B3S-1000P PACKAGE INFO
|
B3S-1000P MANUFACTURING INFO
|
B3S-1000P PACKAGING INFO
|
B3S-1000P ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Pole Throw Configuration |
SPST |
| Switch Configuration |
N.O. |
| Maximum Current Rating (A) |
0.05@24VDC |
| Maximum DC Voltage Rating (V) |
24 |
| Electrical Life (Cycles) |
500000 |
| Mechanical Life (Cycles) |
500000 |
| Actuator Style |
Round Button |
| Operating Force (N) |
1.57 |
| Ground Terminal |
No |
| Dielectric Strength |
500VAC |
| Maximum Contact Resistance (mOhm) |
100 |
| Minimum Insulation Resistance (MOhm) |
100 |
| Actuator Color |
Ivory |
| Actuator Length (mm) |
0.8 |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Operating Temperature (°C) |
-25 |
| IP Rating |
IP67 |
| Body Length (mm) |
6.6 |
| Body Depth (mm) |
6 |
| Body Height (mm) |
3.5 |
| Terminal Length (mm) |
1.5 |
| Number of Rows |
2 |
| Row Spacing (mm) |
7.95 |
| Operating Temperature (°C) |
-25 to 70 |
| Maximum Terminal Width (mm) |
0.7 |
|
|
PACKAGE INFO
|
| Termination Style |
Gull Wing |
| Mounting |
Surface Mount |
| Body Orientation |
Straight |
| Product Length (mm) |
6.6 |
| Product Depth (mm) |
9 |
| Product Height (mm) |
4.3 |
| Product Weight (g) |
0.3 |
| Terminal Pitch (mm) |
4.5 |
| Number of Terminals |
4 |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
60 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Ag |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

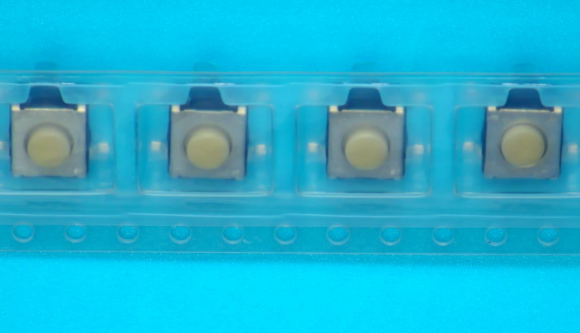

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000(Min) |
| Packaging Document |
Link to Datasheet |
|
|

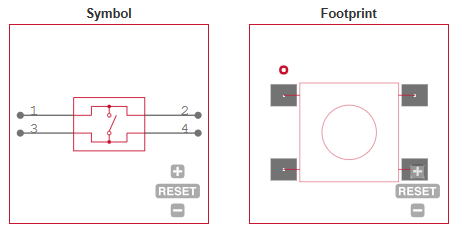

ECAD MODELS
|
|
| |
