• This diode features very low turn-on voltage and fast switching
|
• This device is protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
|

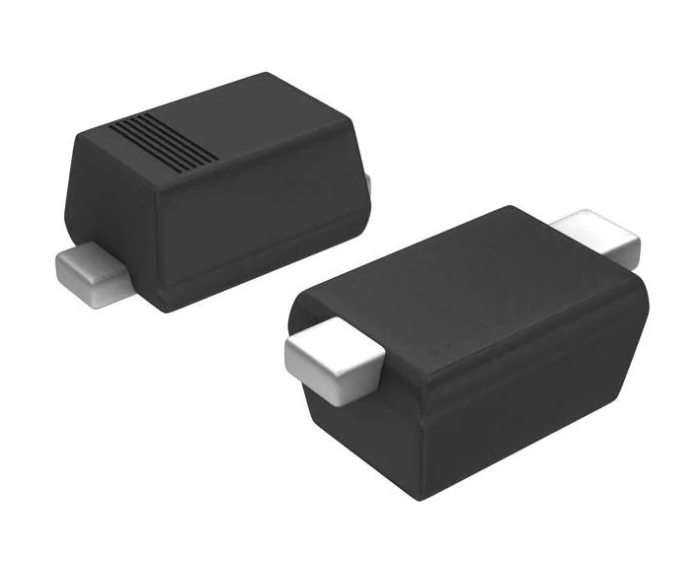

• Space saving SOD-523 package
|
• Material categorization:for definitions of compliance please see www.vishay.com/doc?99912
|
|
| CATALOG |
BAS70-02V-V-G-08 LIFECYCLE
|
BAS70-02V-V-G-08 PARAMETRIC INFO
|
BAS70-02V-V-G-08 PACKAGE INFO
|
BAS70-02V-V-G-08 PACKAGING INFO
|
|
LIFECYCLE
|
Obsolete
May 31,2021
|
|
PARAMETRIC INFO
|
| Type |
Small Signal Schottky Diode |
| Configuration |
Single |
| Maximum DC Reverse Voltage (V) |
70 |
| Peak Reverse Repetitive Voltage (V) |
70 |
| Maximum Continuous Forward Current (A) |
0.1 |
| Maximum Power Dissipation (mW) |
150 |
| Peak Forward Voltage (V) |
1@0.015A |
| Peak Non-Repetitive Surge Current (A) |
0.6 |
| Peak Reverse Current (uA) |
0.1@50V |
| Peak Reverse Recovery Time (ns) |
5 |
| Operating Junction Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOD-523 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
2 |
| Lead Shape |
Flat |
| PCB |
2 |
| Tab |
N/R |
| Pin Pitch (mm) |
N/R |
| Package Length (mm) |
1.3(Max) |
| Package Width (mm) |
0.9(Max) |
| Package Height (mm) |
0.7(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
0.0014 |
| Package Material |
Plastic |
| Package Description |
Small Outline Diode Package |
| Package Family Name |
SOD |
| Jedec |
SOD-523 |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging Suffix |
-08 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
