• Low Forward Voltage Drop
|
• Fast Switching
|
• Ultra-Small Surface Mount Package
|
• PN Junction Guard Ring for Transient and ESD Protection
|
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
|
• Halogen and Antimony Free. “Green” Device (Note 3)
|
• The DIODES™ BAS70DW-05Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.https://www.diodes.com/quality/product-definitions/
|
• An Automotive-Compliant Part is Available Under Separate Datasheet (BAS70TWQ_BAS70DW-04Q)
|
|
| CATALOG |
BAS70BRW-7-F COUNTRY OF ORIGIN
|
BAS70BRW-7-F PARAMETRIC INFO
|
BAS70BRW-7-F PACKAGE INFO
|
BAS70BRW-7-F MANUFACTURING INFO
|
BAS70BRW-7-F PACKAGING INFO
|
BAS70BRW-7-F ECAD MODELS
|
BAS70BRW-7-F APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Schottky Diode |
| Configuration |
Double Dual Series |
| Peak Reverse Repetitive Voltage (V) |
70 |
| Maximum DC Reverse Voltage (V) |
70 |
| Maximum Continuous Forward Current (A) |
0.07 |
| Maximum Power Dissipation (mW) |
200 |
| Maximum Junction Ambient Thermal Resistance |
625°C/W |
| Peak Forward Voltage (V) |
1@0.015A |
| Peak Non-Repetitive Surge Current (A) |
0.1 |
| Maximum RMS Reverse Voltage (V) |
49 |
| Peak Reverse Current (uA) |
0.1@50V |
| Peak Reverse Recovery Time (ns) |
5 |
| Operating Junction Temperature (°C) |
-55 to 125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
125 |
| Maximum Diode Capacitance (pF) |
2 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-363 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.15 |
| Package Width (mm) |
1.3 |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.15 |
| Package Overall Width (mm) |
2.1 |
| Package Overall Height (mm) |
1 |
| Seated Plane Height (mm) |
1 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Alloy 42 |
|
|
| PACKAGING INFO |
| Packaging Suffix |
7 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |

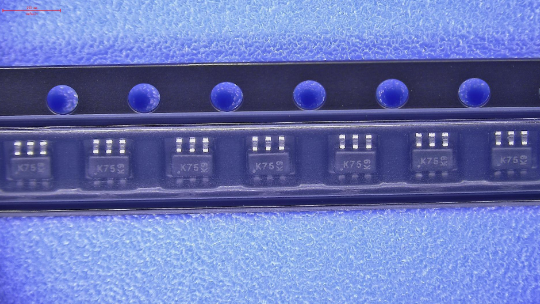

| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

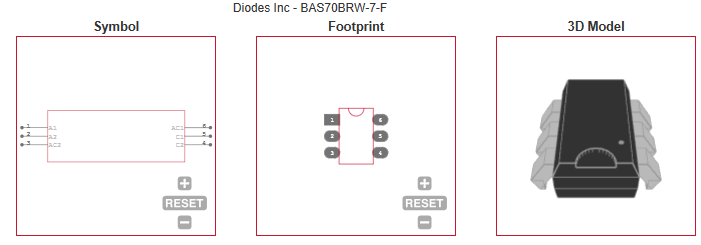

| ECAD MODELS |
|
|
| APPLICATIONS |
| • Polarity protection diodes |
| • Rail-to-rail data line protection for two data lines |
| • Multiplexing circuits |
| • High-efficiency, low-current bridge rectifier circuits |
| • Re-circulating diodes |
| • Switching diodes |
| |
