| • Compact surface mount package 1.6 x 1.6 mm |
| • Output current in proportion to brightness |
| • Suitable for optical window that the visible light transmission is low (High sensitivity type) |
| • The influence of infrared is very small by an infrared cut filter |
| • Supply voltage operates from 2.4V to 5.5V |
| • Built-in shutdown function |
| • 3 steps controllable output current gain |
| • 1.8V logic input interface |
| • Low sensitivity variation (+/-15%) |
|
| CATALOG |
| BH1680FVC-TR COUNTRYOF ORIGIN |
| BH1680FVC-TR PARAMETRIC INFO |
| BH1680FVC-TR PACKAGE INFO |
| BH1680FVC-TR MANUFACTURING INFO |
| BH1680FVC-TR PACKAGING INFO |
| BH1680FVC-TR ECAD MODELS |
| BH1680FVC-TR FUNCTONAL BLOCK DIAGRAM |
| BH1680FVC-TR APPLICATIONS |
|
| COUNTRYOF ORIGIN |
| Thailand |
|
| PARAMETRIC INFO |
| Sensor Type |
Light to Current |
| Typical Supply Current (uA) |
75 |
| Typical Operating Supply Voltage (V) |
3 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Operating Supply Voltage (V) |
2.4 |
| Output Type |
Analog(Current) |
| Peak Wavelength (nm) |
530 |
| Linearity |
No |
| Maximum Power Dissipation (mW) |
165 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
100 |
|
| PACKAGE INFO |
| Supplier Package |
WSOF |
| Pin Count |
5 |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
1.6 |
| Package Width (mm) |
1.2 |
| Package Height (mm) |
0.55(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.6(Max) |
| Mounting |
Surface Mount |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/R |
| Terminal Base Material |
FeNi Alloy |
| Number of Wave Cycles |
N/R |
|

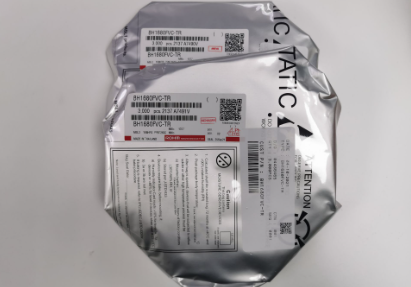

| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|

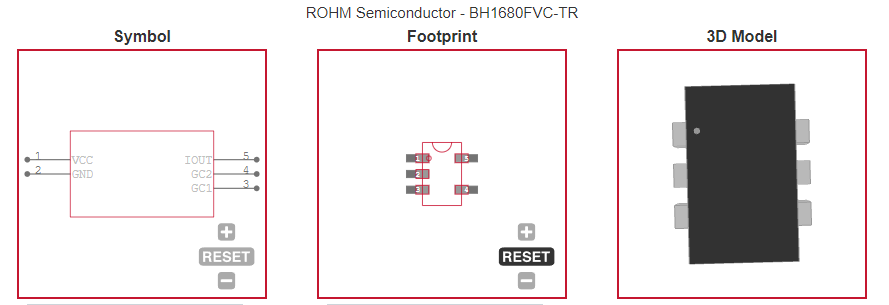

| ECAD MODELS |
 |
|

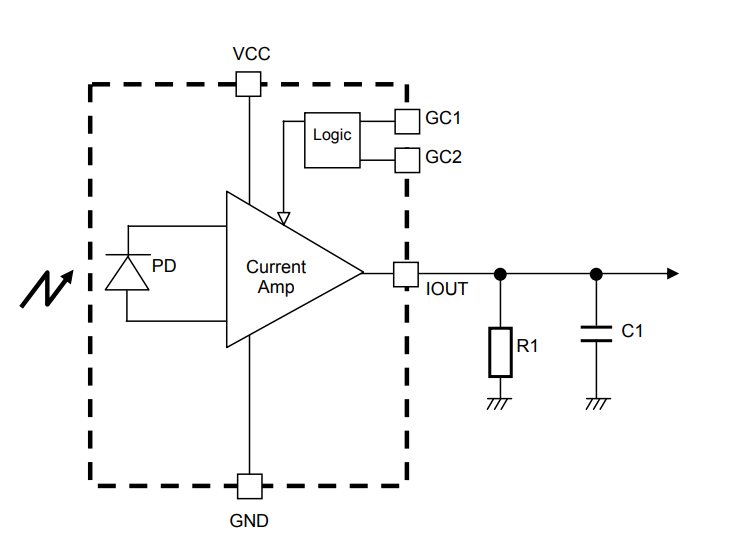

| FUNCTONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Mobile phone, LCD TV, PDP TV, Laptop PC, Portable game console, Digital camera, Digital video camera, LCD display |
|
