BKP1608HS121-T COUNTRY OF ORIGIN
|
BKP1608HS121-T LIFECYCLE
|
BKP1608HS121-T PARAMETRIC INFO
|
BKP1608HS121-T PACKAGE INFO
|
BKP1608HS121-T MANUFACTURING INFO
|
BKP1608HS121-T PACKAGING INFO
|
BKP1608HS121-T ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
LIFECYCLE
|
Obsolete
Dec 29,2023
|
|
PARAMETRIC INFO
|
| Type |
Multi-Layer Power |
| Impedance (Ohm) |
120 |
| Tolerance |
25% |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
2.7 |
| Maximum DC Resistance (Ohm) |
0.035 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
0603 |
| Maximum Product Length (mm) |
1.75 |
| Maximum Product Depth (mm) |
0.95 |
| Maximum Product Height (mm) |
0.95 |
| Maximum Product Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
1 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |

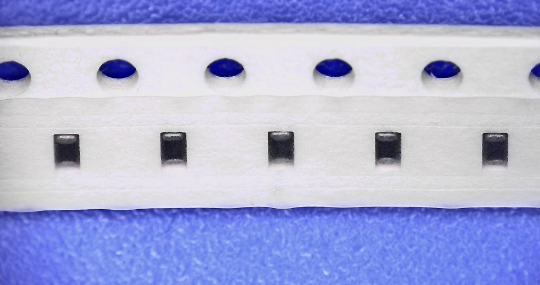

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
|
|

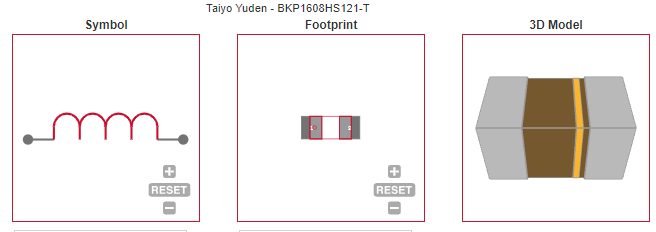

ECAD MODELS
|
 |
| |
