BLM18KG601SN1D COUNTRY OF ORIGIN
|
BLM18KG601SN1D PARAMETRIC INFO
|
BLM18KG601SN1D PACKAGE INFO
|
BLM18KG601SN1D MANUFACTURING INFO
|
BLM18KG601SN1D PACKAGING INFO
|

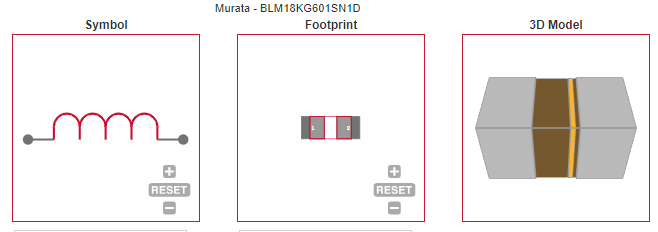

BLM18KG601SN1D ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Japan
|
Philippines
|
Thailand
|
China
|
Singapore
|
|
PARAMETRIC INFO
|
| Type |
Multi-Layer |
| Impedance (Ohm) |
600 |
| Tolerance |
25% |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
1.3 |
| Maximum DC Resistance (Ohm) |
0.15 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Terminal Width (mm) |
0.6 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
0603 |
| Maximum Product Length (mm) |
1.75 |
| Maximum Product Depth (mm) |
0.95 |
| Maximum Product Height (mm) |
0.95 |
| Maximum Product Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Product Weight (g) |
0.005 |
| Package Type |
SMD |
| Product Length (mm) |
1.6 |
| Product Depth (mm) |
0.8 |
| Product Height (mm) |
0.8 |
| Product Diameter (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
5 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
2 |
|
|

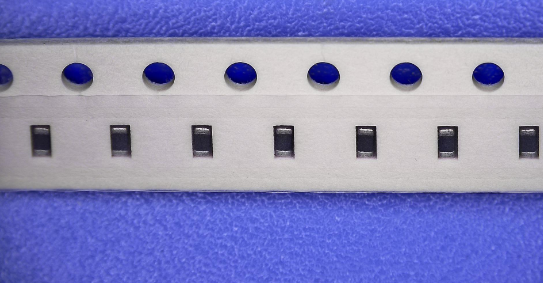

PACKAGING INFO
|
| Packaging Suffix |
D |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7.09 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|
ECAD MODELS
|
|
|
