• The chip ferrite beads BLM series is designed tofunction nearly as a resistor at noise frequencies,which greatly reduces the possibility of resonance andleaves signal wave forms undistorted.BLM series is effective in circuits without stableground lines because BLM series does not need aconnection to ground.
|
• The nickel barrier structure of the externalelectrodes provides excellent solder heat resistance.3.BLM_P series can be used in high current circuitsdue to its low DC resistance. It can match power linesto a maximum of 6A DC.
|
|
| CATALOG |
BLM21PG221SN1D COUNTRY OF ORIGIN
|
BLM21PG221SN1D PARAMETRIC INFO
|
BLM21PG221SN1D PACKAGE INFO
|
BLM21PG221SN1D MANUFACTURING INFO
|
BLM21PG221SN1D PACKAGING INFO
|
| BLM21PG221SN1D ECAD MODELS |
|
COUNTRY OF ORIGIN
|
Thailand
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
Multi-Layer Power |
| Impedance (Ohm) |
220 |
| Tolerance |
25% |
| Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
2 |
| Maximum DC Resistance (Ohm) |
0.045 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Terminal Width (mm) |
0.7 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
0805 |
| Product Length (mm) |
2.2 |
| Product Depth (mm) |
1.45 |
| Product Height (mm) |
1.05 |
| Product Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Product Weight (g) |
0.01 |
| Package Type |
SMD |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
| Number of Wave Cycles |
2 |
|
|

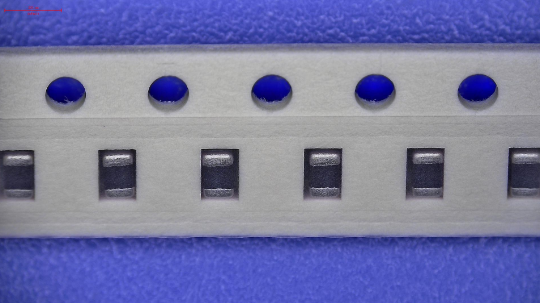

PACKAGING INFO
|
| Packaging Suffix |
D |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7.09 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|

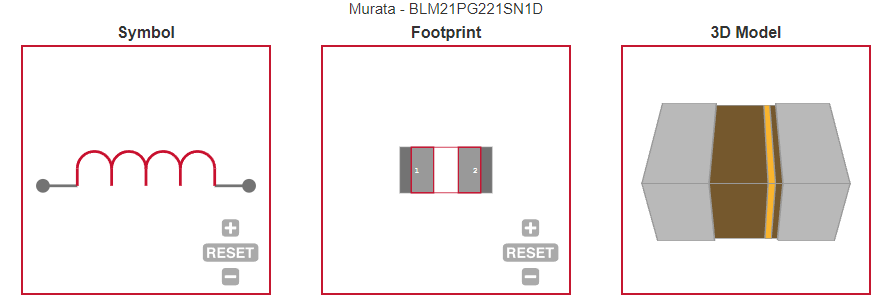

ECAD MODELS
|
|
|
