• Records Battery Gas Gauge Information
|
• Firmware Control of Discharge FET
|
• SHA-1/HMAC Battery Authentication
|
• 12-pin, 2.50-mm x 4.00-mm SON Package
|
|
| CATALOG |
BQ28550DRZT-R1 COUNTRY OF ORIGIN
|
BQ28550DRZT-R1 LIFECYCLE
|
BQ28550DRZT-R1 PARAMETRIC INFO
|
BQ28550DRZT-R1 PACKAGE INFO
|
BQ28550DRZT-R1 MANUFACTURING INFO
|
BQ28550DRZT-R1 PACKAGING INFO
|

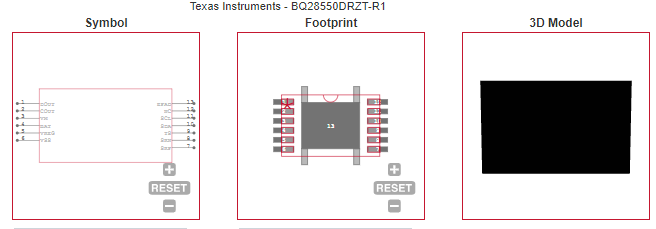

BQ28550DRZT-R1 ECAD MODELS
|
BQ28550DRZT-R1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
LIFECYCLE
|
Obsolete
Jan 26,2023
|
|
PARAMETRIC INFO
|
| Type |
Fuel Gauge |
| Battery Type |
Li-Ion|Li-Pol |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Typical Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Supply Voltage (V) |
2.45 |
| Operating Supply Voltage Range (V) |
2.45 to 5.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
0.141(Typ) |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
VSON EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
12 |
| Lead Shape |
No Lead |
| PCB |
12 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
4 |
| Package Width (mm) |
2.5 |
| Package Height (mm) |
0.85 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Description |
Very Thin Small Outline No Lead, Exposed Pad |
| Package Family Name |
SON |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|

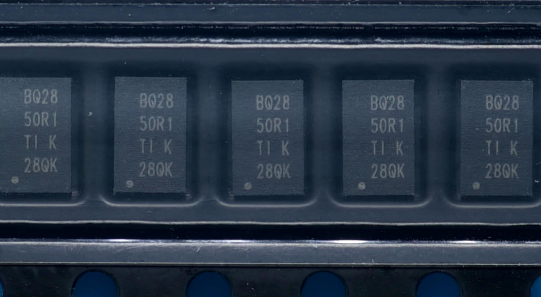

| |
| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
|
| |
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Tablet PCs |
| • Slates |
| • Digital Still and Video Cameras |
| • Handheld Terminals |
| • MP3 or Multimedia Players |
| |
