• High current Triac
|
• Low thermal resistance
|
• BTA40 and BTA41 UL1557 recognized components (file ref: 81734)
|
• RoHS (2002/95/EC) compliant packages
|
• UL-94, V0 flammability package resin compliance
|
|
| CATALOG |
| BTA40-800B COUNTRY OF ORIGIN |
BTA40-800B PARAMETRIC INFO
|
BTA40-800B PACKAGE INFO
|
BTA40-800B MANUFACTURING INFO
|
BTA40-800B PACKAGING INFO
|
BTA40-800B ECAD MODELS
|
BTA40-800B APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Philippines
|
|
PARAMETRIC INFO
|
| Repetitive Peak Reverse Voltage (V) |
800 |
| Maximum Holding Current (mA) |
80 |
| AC Switch |
No |
| Maximum Gate Trigger Current (mA) |
100 |
| Maximum Gate Trigger Voltage (V) |
1.3 |
| Peak On-State Voltage (V) |
1.55@60A |
| Maximum Rate of Rise of Off-State Voltage (V/us) |
500(Min) |
| Maximum Rate of Rise of On-State Current (A/us) |
50 |
| Repetitive Peak Off-State Current (mA) |
0.005 |
| Operating Junction Temperature (°C) |
-40 to 125 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
150 |
| Repetitive Peak Forward Blocking Voltage (V) |
800 |
| Surge Current Rating (A) |
420 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Industrial |
|
|

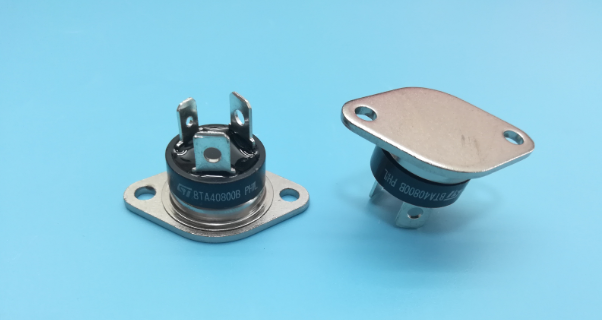

PACKAGE INFO
|
| Supplier Package |
RD-91 |
| Pin Count |
3 |
| PCB |
3 |
| Tab |
N/R |
| Package Length (mm) |
40(Max) |
| Package Width (mm) |
27(Max) |
| Package Height (mm) |
14(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Screw |
| Package Family Name |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging |
Bulk |
| Packaging Document |
Link to Datasheet |
|
|

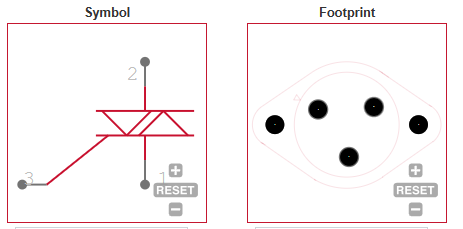

ECAD MODELS
|
|
|
APPLICATIONS
|
• On/off function in static relays, heating regulation, induction motor starting
circuits
|
• Phase control operations in light dimmers and motor speed controllers
|
|
