• Logic level input
|
• Compatible to 3V micro controllers
|
• ESD protection
|
• Thermal shutdown with auto restart
|
• Overload protection
|
• Short circuit protection
|
• Over voltage protection
|
• Open load detection (during Off)
|
• Current limitation
|
• Direct parallel control of the inputs
|
• FREEZE functionality for multiplexing
|
• General fault flag
|
• Very low standby quiescent current
|
• Switching frequencies up to 50kHz
|
• Green Product (RoHS compliant)
|
• AEC Qualified
|
|
| CATALOG |
BTS3408G COUNTRY OF ORIGIN
|
| BTS3408G LIFECYCLE |
BTS3408G PARAMETRIC INFO
|
BTS3408G PACKAGE INFO
|
BTS3408G MANUFACTURING INFO
|
BTS3408G PACKAGING INFO
|
BTS3408G APPLICATION
|
|
COUNTRY OF ORIGIN
|
Austria
|
Malaysia
|
|
| LIFECYCLE |
LTB
Jun 30,2025 |
|
PARAMETRIC INFO
|
| Type |
Low Side |
| Number of Outputs |
2 |
| Number of Inputs |
2 |
| Minimum Input Voltage (V) |
-0.3 |
| Maximum Input Voltage (V) |
7 |
| Interface Type |
On/Off |
| Maximum Output Current (A) |
2 |
| Output Type |
N-Channel |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Input Type |
Non-Inverting |
| Switch On Resistance (mOhm) |
480 |
| Maximum Power Dissipation (mW) |
880 |
|
|
PACKAGE INFO
|
| Supplier Package |
DSO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5 |
| Package Width (mm) |
4 |
| Package Height (mm) |
1.45 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5 |
| Package Overall Width (mm) |
6 |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Dual Small Outline |
| Package Family Name |
SO |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

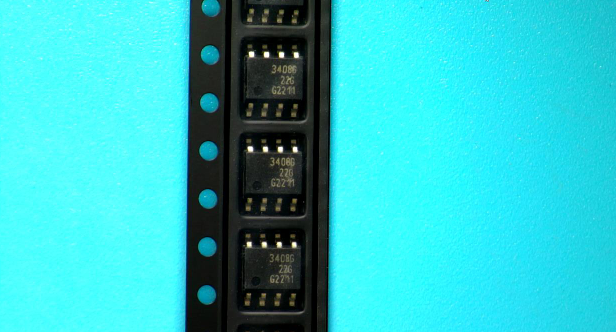

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATION
|
• All kinds of resistive, inductive and capacitive loads in switching applications
|
• µC compatible power switch for 12 V, 24 V and 42 V applications
|
• Replaces electromechanical relays and discrete circuits
|
• Line, stepper motor, lamp and relay driver
|
|
