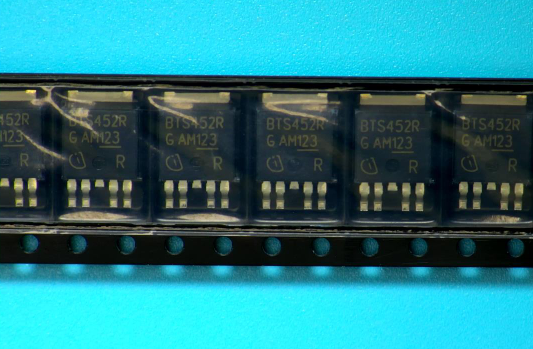

| CATALOG |
| BTS452RATMA1 COUNTRY OF ORIGIN |
BTS452RATMA1 PARAMETRIC INFO
|
BTS452RATMA1 PACKAGE INFO
|
BTS452RATMA1 MANUFACTURING INFO
|
BTS452RATMA1 PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Minimum Input Voltage (V) |
-10 |
| Maximum Input Voltage (V) |
16 |
| Maximum Output Current (A) |
2.2(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
150 |
| Maximum Power Dissipation (mW) |
41600 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-252 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
4 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.14 |
| Package Length (mm) |
6.5 |
| Package Width (mm) |
6.22 |
| Package Height (mm) |
2.3 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Deca Watt Package |
| Package Family Name |
TO |
| Jedec |
TO-252AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
| |
