| • Part of scalable product family |
| • Load current sense |
| • Reversave™ |
| • Very low standby current |
| • Current controlled input pin |
| • Improved electromagnetic compatibility (EMC) |
| • Fast demagnetization of inductive loads |
| • Stable behavior at under-voltage |
| • Green Product (RoHS compliant) |
| • AEC Qualified |
|
| CATALOG |
| BTS5014SDAAUMA1 COUNTRY OF ORIGIN |
| BTS5014SDAAUMA1 PARAMETRIC INFO |
| BTS5014SDAAUMA1 PACKAGE INFO |
| BTS5014SDAAUMA1 MANUFACTURING INFO |
| BTS5014SDAAUMA1 PACKAGING INFO |
| BTS5014SDAAUMA1 FUNCTIONAL BLOCK DIAGRAM |
| BTS5014SDAAUMA1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
| PARAMETRIC INFO |
| Type |
High Side |
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Minimum Input Voltage (V) |
-16 |
| Interface Type |
On/Off |
| Maximum Input Voltage (V) |
63 |
| Maximum Output Current (A) |
7(Typ) |
| Output Type |
N-Channel |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
14 |
| Supplier Temperature Grade |
Automotive |
|
| |
| PACKAGE INFO |
| Supplier Package |
TO-252 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
4 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.14 |
| Package Length (mm) |
6.5 |
| Package Width (mm) |
6.22 |
| Package Height (mm) |
2.3 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Deca Watt Package |
| Package Family Name |
TO-252 |
| Jedec |
TO-252AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
| |

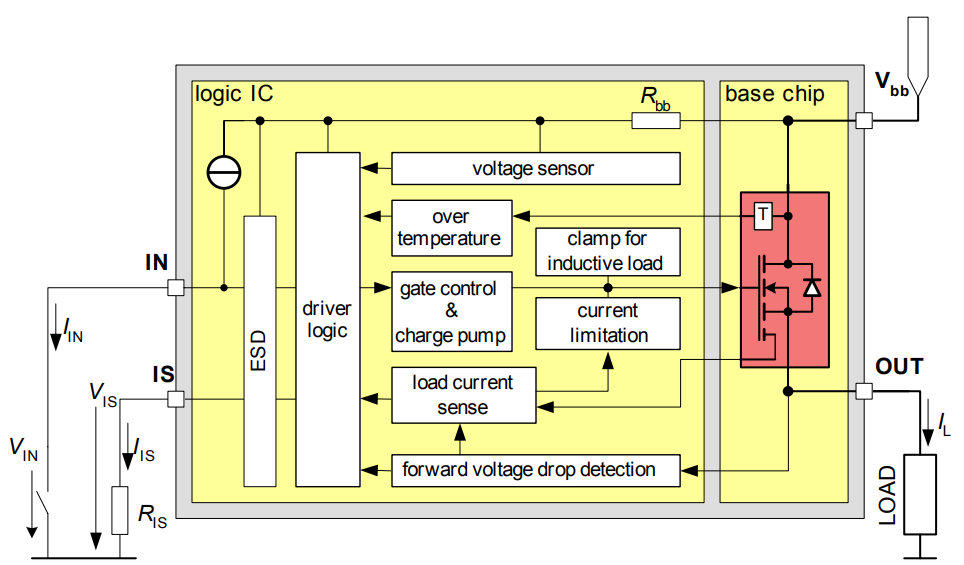

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • µC compatible high-side power switch with diagnostic feedback for 12 V grounded loads |
| • All types of resistive, inductive and capacitive loads |
| • Most suitable for loads with high inrush currents, so as lamps |
| • Replaces electromechanical relays, fuses and discrete circuits
|
|
