• High-Side Switch with Diagnosis and Embedded Protection
|
• Part of PROFET™ +2 12V Family
|
• ReverseON for low power dissipation in Reverse Polarity
|
• Switch ON capability while Inverse Current condition (InverseON)
|
• Green Product (RoHS compliant)
|
|
| CATALOG |
BTS70081EPAXUMA1 COUNTRY OF ORIGIN
|
BTS70081EPAXUMA1 PARAMETRIC INFO
|
BTS70081EPAXUMA1 PACKAGE INFO
|
BTS70081EPAXUMA1 MANUFACTURING INFO
|
BTS70081EPAXUMA1 PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
| Germany |
| Austria |
| Indonesia |
|
PARAMETRIC INFO
|
| Type |
High Side |
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Interface Type |
On/Off |
| Maximum Output Current (A) |
10(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Output Type |
N-Channel |
| Maximum Operating Temperature (°C) |
150 |
| Typical Supply Current (mA) |
3 |
| Input Type |
Non-Inverting |
| Typical Switch On Resistance (mOhm) |
9 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
TSDSO EP |
| Pin Count |
14 |
| PCB |
14 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.15(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
|
|
|

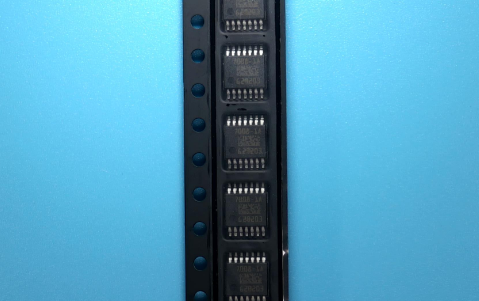

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
| |
