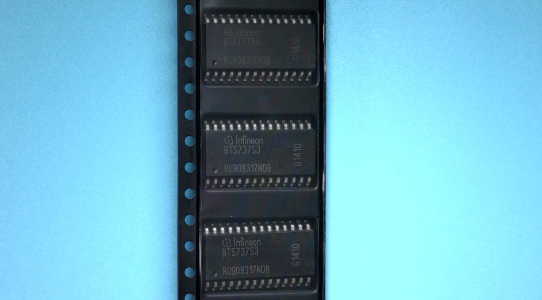

BTS737S3 COUNTRY OF ORIGIN
|
BTS737S3 LIFECYCLE
|
BTS737S3 PARAMETRIC INFO
|
BTS737S3 PACKAGE INFO
|
BTS737S3 MANUFACTURING INFO
|
BTS737S3 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Indonesia
|
|
LIFECYCLE
|
Obsolete
Apr 30,2015
|
|
PARAMETRIC INFO
|
| Type |
High Side |
| Number of Outputs |
4 |
| Number of Inputs |
4 |
| Minimum Input Voltage (V) |
-10 |
| Interface Type |
On/Off |
| Maximum Input Voltage (V) |
16 |
| Maximum Output Current (A) |
5.4(Typ) |
| Output Type |
N-Channel |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Input Type |
Non-Inverting |
| Switch On Resistance (mOhm) |
30 |
| Maximum Power Dissipation (mW) |
3700 |
|
|
PACKAGE INFO
|
| Supplier Package |
DSO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
18.1 |
| Package Width (mm) |
7.6 |
| Package Height (mm) |
2.45 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.65(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Dual Small Outline |
| Package Family Name |
SO |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
235 |
| Reflow Solder Time (Sec) |
20 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
SnPb |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
APPLICATIONS
|
• µC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads
|
• All types of resistive and capacitve loads
|
• Most suitable for loads with high inrush currents, so as lamps
|
• Replaces electromechanical relays, fuses and discrete circuits
|
|
