• Omnipolar Detection (Polarity Detection for both S and N Poles with Separate, Dual Outputs)
|
• Micro Power Operation (Small Current Using Intermittent Operation Method)
|
• Ultra-small Outline Package
|
• Polarity Judgment and Separate Output on both Poles (OUT1=S-pole Output; OUT2=N-pole Output)
|
|
| CATALOG |
BU52272NUZ-ZE2 COUNTRY OF ORIGIN
|
BU52272NUZ-ZE2 PARAMETRIC INFO
|
BU52272NUZ-ZE2 PACKAGE INFO
|
BU52272NUZ-ZE2 PACKAGING INFO
|
BU52272NUZ-ZE2 ECAD MDOELS
|
BU52272NUZ-ZE2 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Japan
|
Philippines
|
Thailand
|
|
PARAMETRIC INFO
|
| Magnetic Type |
Omnipolar |
| Minimum Magnetic Sensor Release Point (Gs) |
1.2 |
| Typical Magnetic Sensor Hysteresis (Gs) |
40 |
| Maximum Magnetic Sensor Operating Point (Gs) |
32 |
| Minimum Operating Supply Voltage (V) |
1.65 |
| Typical Operating Supply Voltage (V) |
1.8 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Maximum Supply Current (uA) |
8 |
| Maximum Output Current (mA) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Output Driver |
CMOS |
| Operating Supply Voltage (V) |
1.8 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
VSON |
| Pin Count |
4 |
| PCB |
4 |
| Tab |
N/R |
| Package Length (mm) |
1.1 |
| Package Width (mm) |
1.4 |
| Package Height (mm) |
0.4(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
SON |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
5000 |
|
|

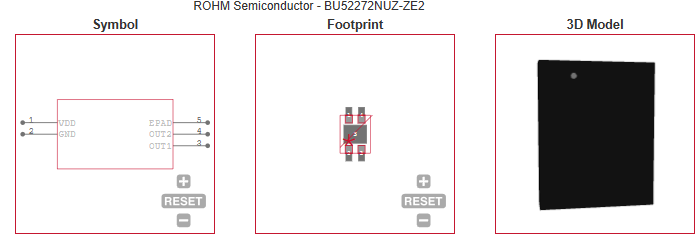

| ECAD MODELS |
|
|
| APPLICATIONS |
| • Tablets, Smart Phones, Notebook Computers,Digital Video Cameras, Digital Still Cameras, etc. |
| |
