• Wide Zener voltage range selection: 2.4V to 75V
|
• VZ tolerance selection of ± 5%
|
• Moisture sensitivity level: level 1, per J-STD-020
|
• RoHS Compliant
|
|
| CATALOG |
BZT52C12S RRG COUNTRY OF ORIGIN
|
BZT52C12S RRG PARAMETRIC INFO
|
BZT52C12S RRG PACKAGE INFO
|
BZT52C12S RRG MANUFACTURING INFO
|
BZT52C12S RRG PACKAGING INFO
|
BZT52C12S RRG APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Voltage Regulator |
| Configuration |
Single |
| Typical Zener Voltage (V) |
12 |
| Maximum Reverse Leakage Current (uA) |
0.09 |
| Maximum Zener Impedance (Ohm) |
25 |
| Maximum Power Dissipation @ 25C (mW) |
200 |
| Maximum Power Dissipation (mW) |
200 |
| Test Current (mA) |
5 |
| Maximum Forward Voltage (V) |
1 |
| Zener Voltage Tolerance |
5% |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOD-323F |
| Pin Count |
2 |
| PCB |
2 |
| Tab |
N/R |
| Package Length (mm) |
1.8(Max) |
| Package Width (mm) |
1.35(Max) |
| Package Height (mm) |
1.1(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Family Name |
SOD |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
|
|
PACKAGING INFO
|

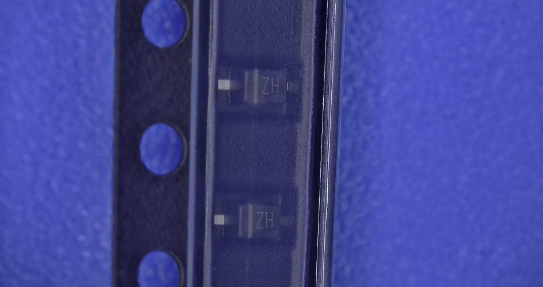

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Low voltage stabilizers or voltage references
|
• Adapters
|
• On-board DC/DC converter
|
| |
