| C3225X7S2A335K200AB COUNTRY OF ORIGIN |
C3225X7S2A335K200AB PARAMETRIC INFO
|
C3225X7S2A335K200AB PACKAGE INFO
|
C3225X7S2A335K200AB MANUFACTURING INFO
|
C3225X7S2A335K200AB PACKAGING INFO
|
C3225X7S2A335K200AB ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Japan |
United States of America
|
|
PARAMETRIC INFO
|
| Capacitance Value |
3.3uF |
| Voltage |
100VDC |
| Tolerance |
10% |
| Dielectric |
X7S |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
125 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
No |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| DC Rated Voltage (VDC) |
100 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| Maximum Storage Temperature (°C) |
40 |
| Minimum Storage Temperature (°C) |
5 |
| Maximum Dissipation Factor (%) |
5 |
| Polarity |
Non Polar |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Package/Case |
1210 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
3.2 |
| Product Depth (mm) |
2.5 |
| Product Height (mm) |
2 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
N/A |
| Number of Terminals |
2 |
| Size (mm) |
3.2 X 2.5 X 2 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
|
|

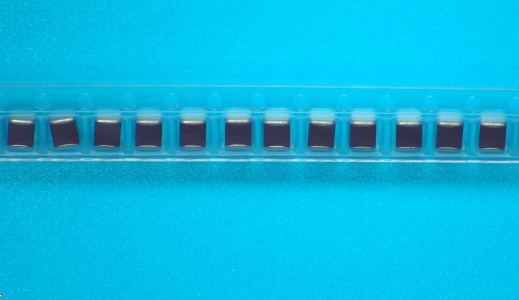

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
|
|

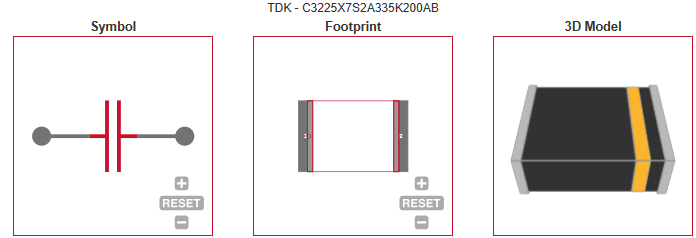

ECAD MODELS
|
|
|
|
|
|
| |
