• Self-healing
|
• Low losses
|
• High ripple current
|
• High capacitance density
|
• High contact reliability
|
• Suitable for high frequency applications
|
|
| CATALOG |
C4AEGBW5500A3LJ COUNTRY OF ORIGIN
|
C4AEGBW5500A3LJ PARAMETRIC INFO
|
C4AEGBW5500A3LJ PACKAGE INFO
|
C4AEGBW5500A3LJ MANUFACTURING INFO
|
C4AEGBW5500A3LJ PACKAGING INFO
|
C4AEGBW5500A3LJ ECAD MODELS
|
C4AEGBW5500A3LJ APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Finland
|
China
|
North Macedonia
|
Bulgaria
|
Indonesia
|
Italy
|
|
PARAMETRIC INFO
|
| Capacitance Value |
50uF |
| Voltage |
450VDC |
| Tolerance |
5% |
| Type |
Power Film |
| Dielectric |
PP |
| Equivalent Series Resistance (Ohm) |
0.0025 |
| Construction |
Plastic Rectangular Can |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Lead Diameter (mm) |
1.2 |
| Operating Temperature (°C) |
-40 to 85 |
| DC Rated Voltage (VDC) |
450 |
| Negative Capacitance Tolerance (%) |
-5 |
| Positive Capacitance Tolerance (%) |
5 |
| Lead Length (mm) |
6 |
| Polarity |
Non Polar |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
PC Pin |
| Package/Case |
N/R |
| Terminal Pitch (mm) |
37.5 |
| Product Length (mm) |
42 |
| Product Depth (mm) |
30 |
| Product Height (mm) |
45 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
45 |
| Product Weight (g) |
N/A |
| Size (mm) |
42 X 30 X 45 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging |
Bulk |
| Quantity Of Packaging |
36 |
| Packaging Document |
Link to Datasheet |
|
|

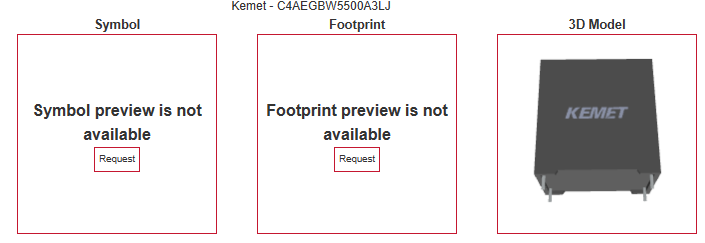

| ECAD MODELS |
|
|
| APPLICATIONS |
• Typical applications include DC filtering and energy storage
|
|
