• High-Frequency Operation
|
• Temperature-Independent Switching Behavior
|
• Parallel Devices Without Thermal Runaway
|
|
| CATALOG |
C4D40120D COUNTRY OF ORIGIN
|
C4D40120D PARAMETRIC INFO
|
C4D40120D PACKAGE INFO
|
C4D40120D MANUFACTURING INFO
|
C4D40120D PACKAGING INFO
|
C4D40120D ECAD MODELS
|
C4D40120D APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
United States of America
|
|
PARAMETRIC INFO
|
| Type |
Schottky Diode |
| Configuration |
Dual Common Cathode |
| Maximum DC Reverse Voltage (V) |
1200 |
| Material |
SiC |
| Peak Reverse Repetitive Voltage (V) |
1200 |
| Maximum Continuous Forward Current (A) |
113 |
| Maximum Power Dissipation (mW) |
532000 |
| Maximum Forward Voltage (V) |
1.8@20A |
| Peak Non-Repetitive Forward Surge Current (A) |
1150 |
| Peak Reverse Current (uA) |
200 |
| Operating Junction Temperature (°C) |
-55 to 175 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
135 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
175 |
| Supplier Temperature Grade |
Industrial |
|
|

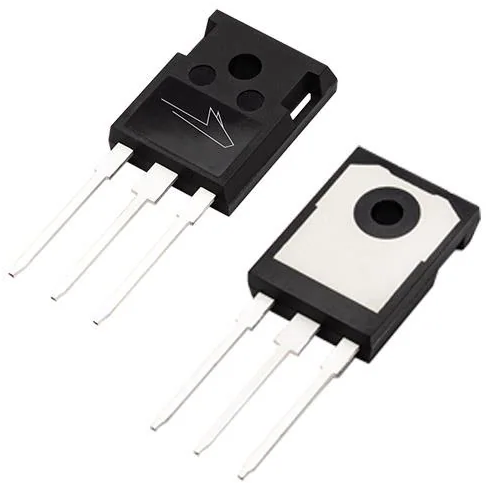

PACKAGE INFO
|
| Supplier Package |
TO-247 |
| Pin Count |
3 |
| PCB |
3 |
| Tab |
Tab |
| Package Length (mm) |
16.13(Max) |
| Package Width (mm) |
5.21(Max) |
| Package Height (mm) |
21.1(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Family Name |
TO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
30 |
|
|

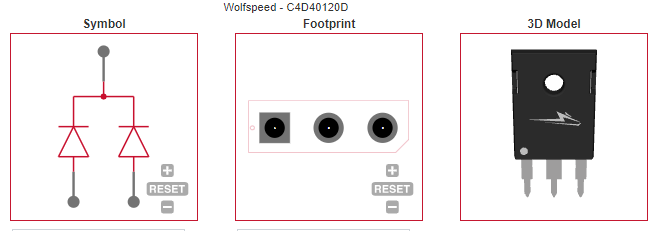

ECAD MODELS
|
|
|
APPLICATIONS
|
| • Boost Diodes in PFC or DC/DC Stages |
| • Free Wheeling Diodes in Inverter Stages |
| • Switch Mode Power Supplies |
| • Solar Inverters |
| • AC/DC Converters |
| |
